CategoryHi-Temp Medium DutyItem NO.h50104- h504-h4B
Wheel Diameter4"(100mm)Mounting TypeRigid
Tread MaterialHi-Temperature NylonDynamic Load125kg
Wheel Width30mmBracket Width41mm
Mounting Height133mmSurface TreatmentZinc Coating
Plate Thickness4mmBracket Thickness2.5mm
ColorBrownBearingDouble Ball Bearing
Applicable Temperature210℃Tread Hardness67D





Product Details

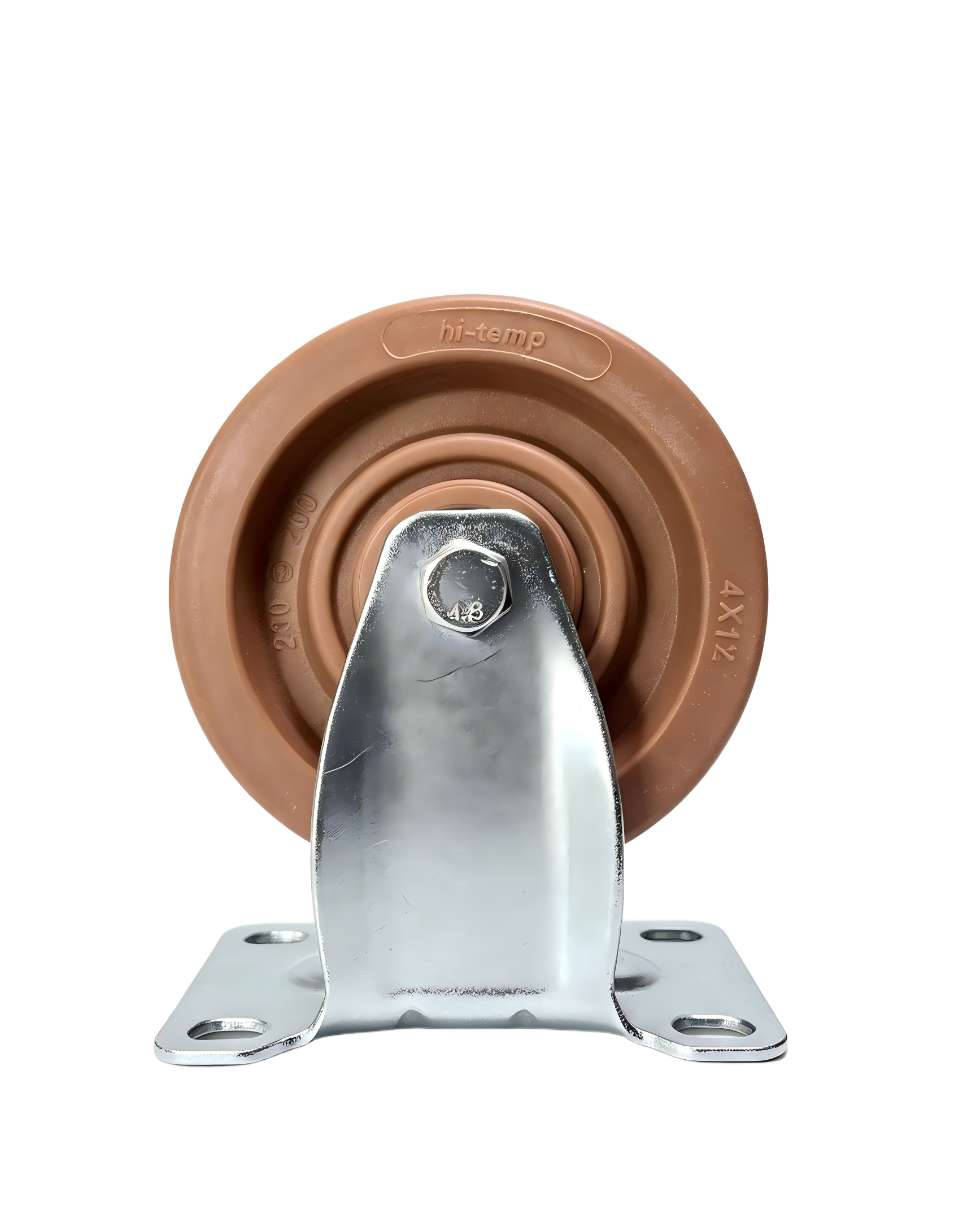

Designed for demanding industrial environments, h50104-h504-h4B  feature a specially formulated heat-resistant nylon wheel that can continuously withstand temperatures up to 210°C. The excellent thermal stability makes them ideal for applications such as baking ovens, food processing equipment, heating facilities, and other high-temperature working areas.

The caster is equipped with a durable carbon steel bracket with a 4 mm thick top plate, providing reliable structural strength and supporting a load capacity of up to 125 kg per caster. The robust construction ensures stable performance during frequent equipment movement.

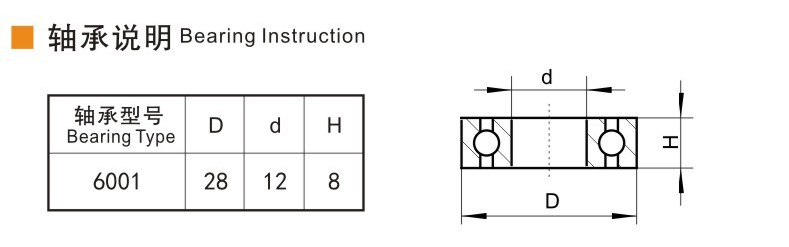

For smoother operation, the wheel is fitted with dual ball bearings, which reduce rolling resistance and improve maneuverability. This design allows operators to move equipment with less effort while maintaining excellent durability for long-term use.

Combining heat resistance, strong load performance, and smooth mobility, these nylon casters provide a reliable solution for industrial equipment requiring safe and efficient movement in high-temperature conditions.
