CategoryHi-Temp Medium DutyItem NO.hS50124L- h504-h4B
Wheel Diameter4"(100mm)Mounting Type

Plate Swivel

Tread MaterialHi-Temperature NylonDynamic Load125kg
Bracket MaterialStainless SteelBrake TypeStainless Steel Dual Brake
Wheel Width30mmBracket Width41mm
Mounting Height133mmPlate Thickness4mm
ColorBrownBracket Thickness2.5mm

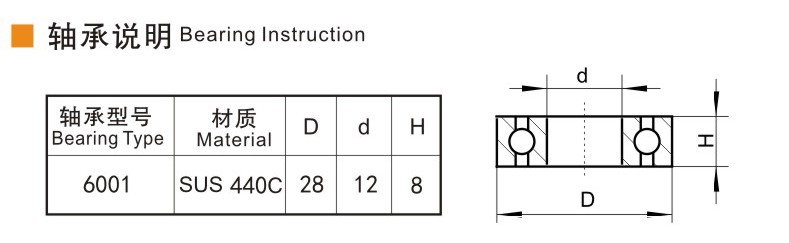

BearingDouble Ball BearingBearing MaterialStainless Steel
Applicable Temperature210℃Tread Hardness67D





Product Details

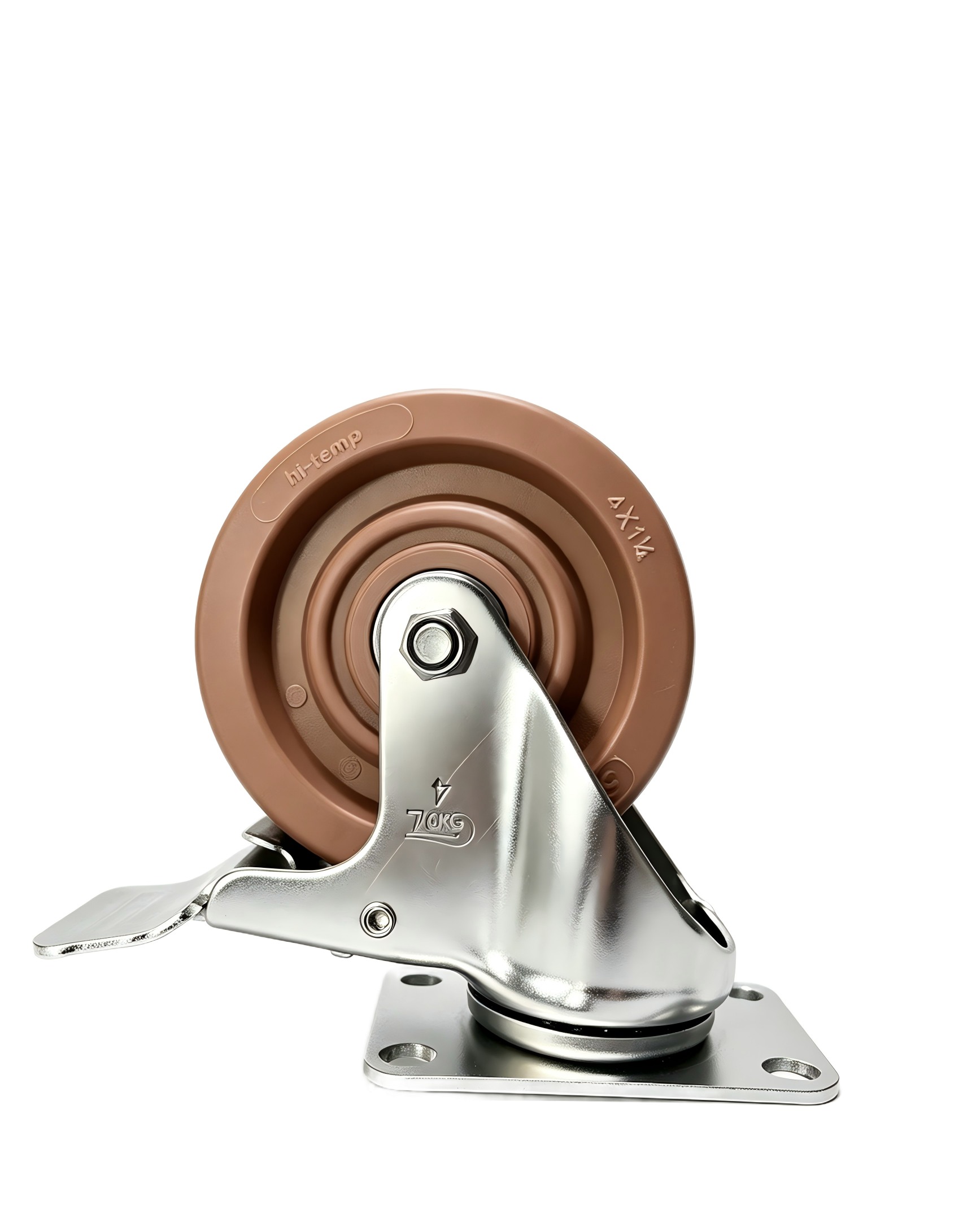

The hS50124L-h504-h4B High Temperature Stainless Steel Swivel Casters with Brake are designed for applications requiring high temperature resistance, corrosion protection, flexible mobility, and secure positioning. The caster features a specially formulated heat-resistant nylon wheel that can continuously withstand temperatures up to 210°C, making it suitable for baking ovens, food processing equipment, heating facilities, and other high-temperature working environments.


The stainless steel swivel bracket provides excellent corrosion resistance and durability, even in environments exposed to moisture, frequent cleaning, and demanding sanitary conditions. The stainless steel construction is safe and non-toxic, making it an ideal choice for food processing equipment and hygiene-sensitive applications.


The 360° swivel design allows equipment to move smoothly in multiple directions, providing better maneuverability and flexibility in limited spaces. Equipped with a reliable brake system, the caster can be securely locked when required, preventing unwanted movement and ensuring stable operation. The 4 mm thick top plate and reinforced structure support a load capacity of up to 125 kg per caster, ensuring stable and reliable performance during operation.


With dual ball bearings inside the wheel, these casters provide smooth and effortless rolling performance, reducing pushing force while extending service life. Combining high temperature resistance, stainless steel corrosion protection, flexible movement, smooth operation, and secure braking capability, these high-temperature stainless steel swivel casters with brake are a reliable solution for industrial equipment requiring both mobility and stability in demanding environments.
