The Ultimate Guide to ESD Casters for Electronics Manufacturing & PCB Assembly

One spark of static electricity can ruin thousands of dollars in electronic parts. This hidden danger is called Electrostatic Discharge (ESD). It's a major risk in electronics manufacturing. This guide will show you how to pick, use, and care for the right anti static casters for pcb assembly and other delicate work. You will learn how to choose the best casters. You'll understand key differences in materials. You'll also build a complete static control system.

Key Takeaways

• Regular casters create static electricity that can damage sensitive electronics.

• ESD (Electrostatic Dissipative) casters are the safest choice for handling parts. They discharge static slowly and safely.

• To choose the right caster, you must think about load capacity, wheel material, floor type, and the environment.

• ESD casters only work as part of a complete grounding system. This includes an ESD floor.

• Regular cleaning and testing are needed to make sure your ESD casters keep working right.

The Silent Threat: Why Standard Casters Are a Risk

When a normal caster made of nylon or rubber rolls across a floor, it creates friction. This friction builds up static electricity on the cart. This is called triboelectric charging.

This static charge can then jump to a sensitive electronic part, like a circuit board. This can cause two types of damage. One is a total failure. The part is instantly broken.

The other type is more dangerous. It's called a latent defect. The part is only partly damaged. It might pass all tests but then fail later when the customer uses it. This often costs more to a company's reputation and profits. An ESD event as low as 20-30 volts can damage modern parts. A person cannot feel a static shock until it reaches about 3,000 volts.

High-risk areas for this kind of damage include: *   SMT production lines *   PCB handling carts *   Cleanroom equipment *   Test and repair stations

What Are ESD Casters? The Core of Static Protection

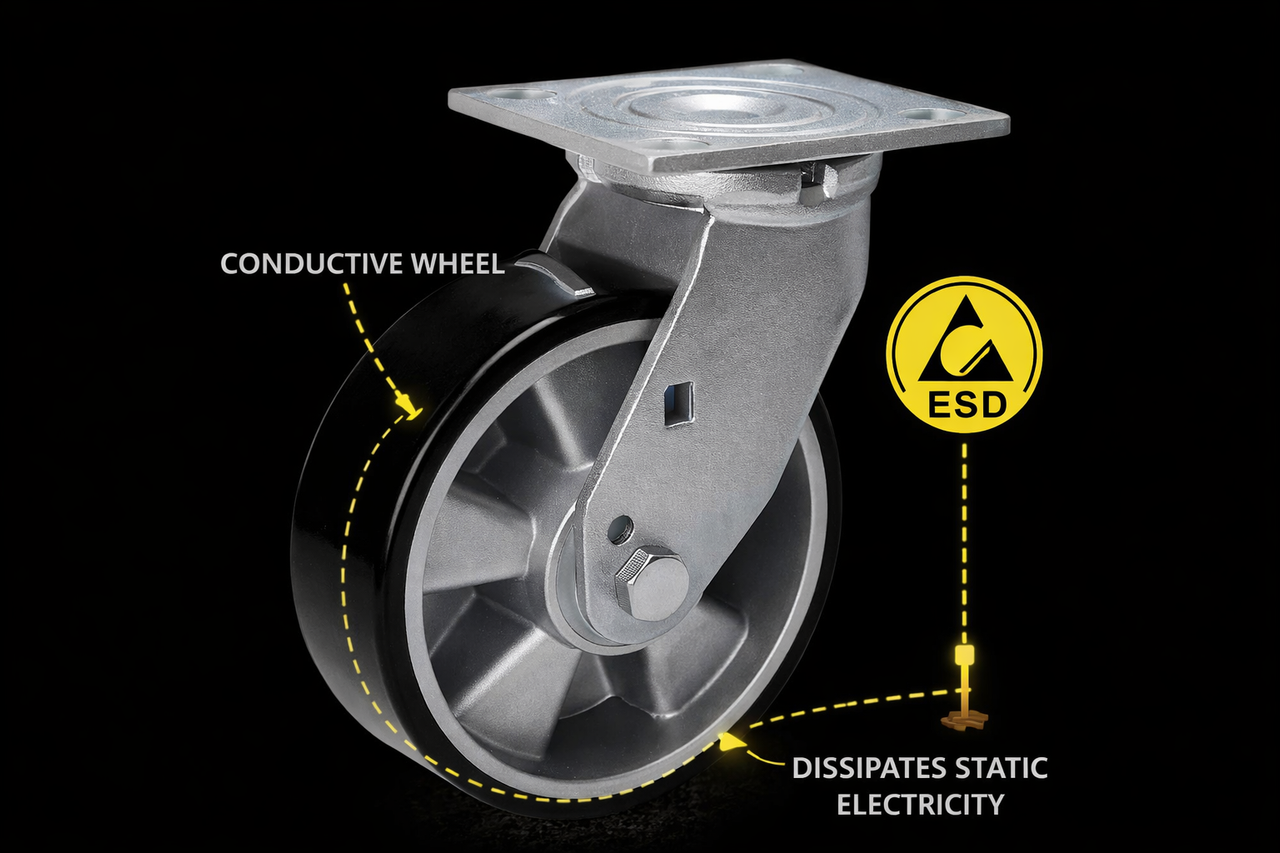

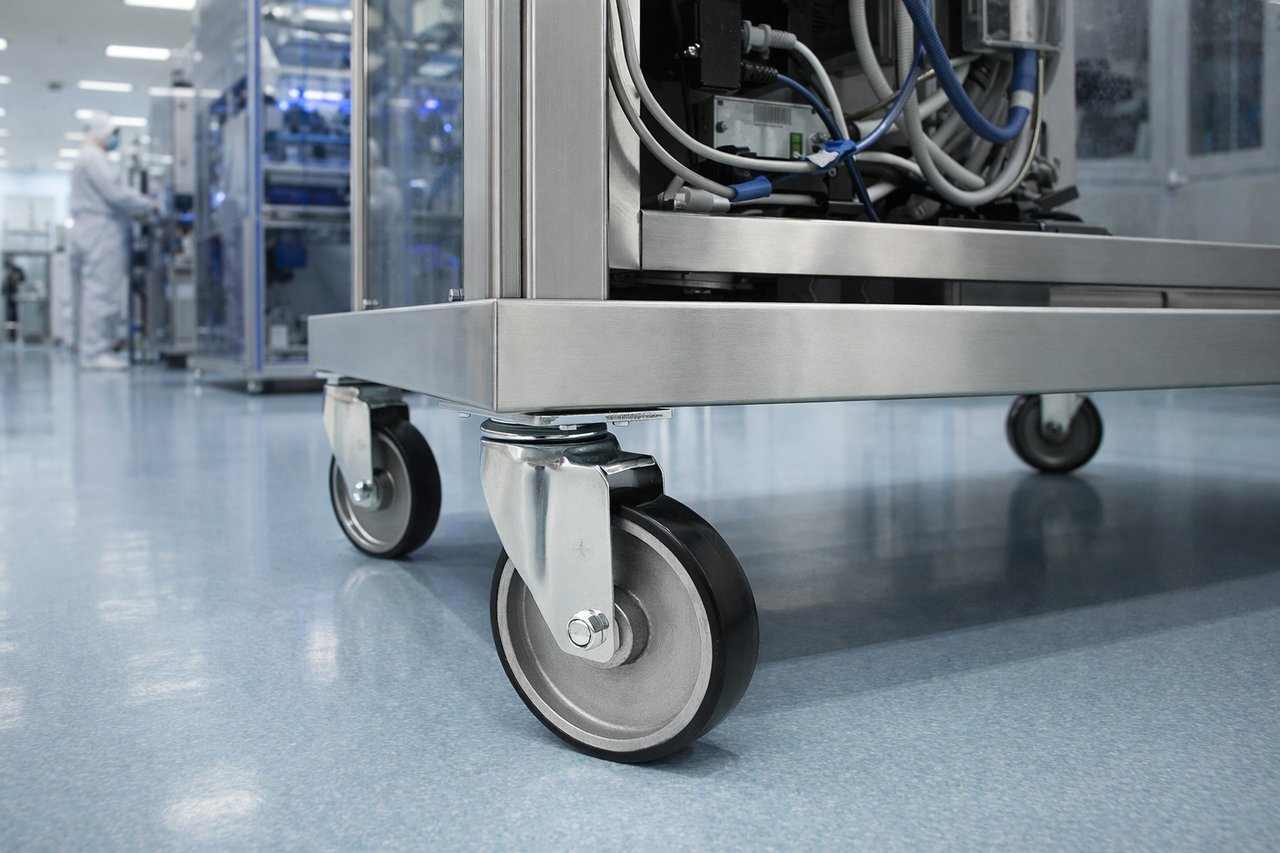

ESD (Electrostatic Dissipative) and anti-static casters are special wheels. They are made with materials that safely move static electricity away from the cart. The electricity goes to a grounded floor.

They work by creating a constant path to the ground. This path stops static charge from building up on your cart. It also protects the sensitive parts the cart carries. You can think of them as a tiny lightning rod for your equipment. They are a key part of protecting your products. These Premium ESD Castors for Safe Operations provide an essential layer of safety.

How to Select the Right ESD Casters: A 5-Step Checklist

Choosing the right esd casters for electronics manufacturing is critical. A wrong choice can lead to damaged products and wasted money. Follow this simple checklist to make a smart decision.

Step 1: Determine Load Capacity

First, figure out how much weight each caster needs to support. Add the weight of the cart itself to the maximum weight of the load it will carry. For safety, divide this total weight by 3, not 4. This ensures the cart stays stable if one wheel lifts off the ground on an uneven floor.

Step 2: Match Resistance to Your Floor

Your casters and your floor must work together as a system. The key is to match the electrical resistance of the caster to your ESD floor. We will cover the details of resistance types in the next section.

Step 3: Choose the Right Wheel Material

Different materials work best for different jobs. *   ESD Polyurethane: A great all-around choice. It is quiet and protects floors from marks. It works well in most manufacturing areas. *   ESD Rubber: This material is softer and absorbs shocks. It is ideal for carts that transport very delicate parts. These parts could be damaged by bumps. *   ESD Nylon: This is a very hard and durable material. It can handle very heavy loads but can be noisy. It may damage some floor surfaces.

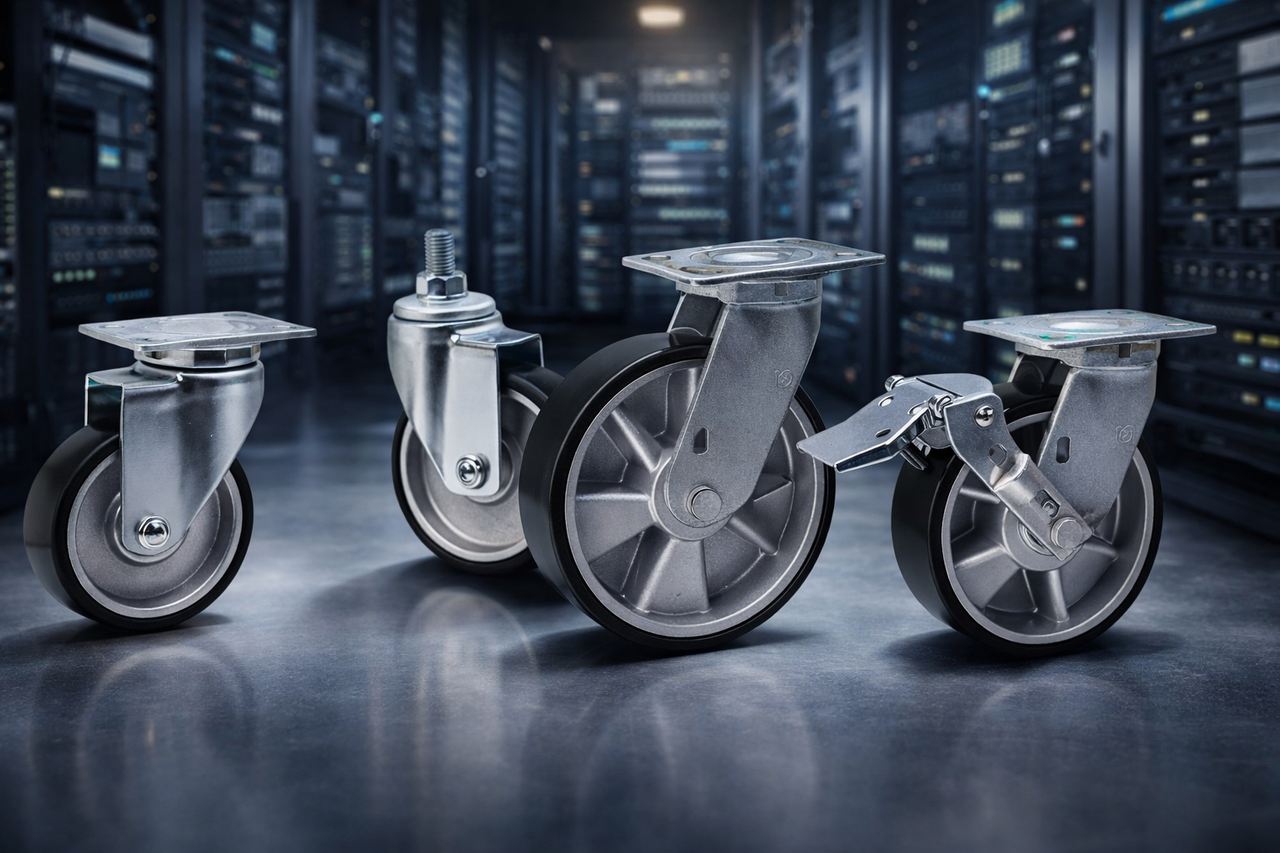

Step 4: Select Bearing and Rig Type

The bearings and rig (the metal part that holds the wheel) are also important. *   Bearings: For cleanrooms, use sealed precision bearings. They keep grease from leaking out and causing contamination. *   Rig: Choose a swivel, rigid, or total-lock rig. Swivel casters turn in any direction. Rigid casters only move in a straight line. Total-lock brakes are best for safety. They lock both the wheel and the swivel at the same time.

Step 5: Verify Environmental Compatibility

Think about where the cart will be used. Will it be exposed to chemicals like cleaning alcohol? Will it be in a hot area? Make sure the caster material can handle the conditions. Look for non-marking wheels to keep your floors clean. There is a wide variety of electrostatic dissipative casters available to fit any need.

Feature	Consideration for PCB Assembly	Recommended Material/Type
Resistance Range	Must match ESD flooring (e.g., 10^6 to 10^9 Ohms for dissipative)	ESD (Dissipative) is most common
Load Capacity	Cart weight + max PCB/component load + safety factor	Calculate per caster
Wheel Material	Non-marking, chemical resistance (IPA), low particulation	Polyurethane or Thermoplastic Rubber
Bearing Type	Cleanroom compatibility, smooth roll	Sealed Precision Ball Bearings
Brakes	Stability at workstations and during loading/unloading	Total-lock brakes (locks swivel & wheel)

Conductive vs. ESD Casters: A Critical Distinction

People often confuse conductive and electrostatic dissipative (ESD) casters. But they are very different. Choosing the wrong one can make your static control program fail.

Conductive Casters

• Resistance: Very low, usually less than 100,000 Ohms (10^5 Ohms).

• Function: Moves static charge to the ground very, very quickly.

• Use Case: Best for grounding people or in areas where a fast discharge is not a danger to products. They are generally not used on carts that carry ultra-sensitive parts. The fast discharge can act like a small static shock itself.

Electrostatic Dissipative (ESD) Casters

• Resistance: A controlled, higher range, usually from 1 million to 1 billion Ohms (10^6 to 10^9 Ohms).

• Function: Drains static charges to the ground at a slower, more controlled rate.

• Use Case: This is the industry standard for casters for electronics factory carts and for handling anti static casters for sensitive components. The controlled discharge protects electronics from a sudden voltage spike. This makes them the safe choice.

For almost all applications involving modern electronics, ESD (dissipative) casters are the correct and safer option.

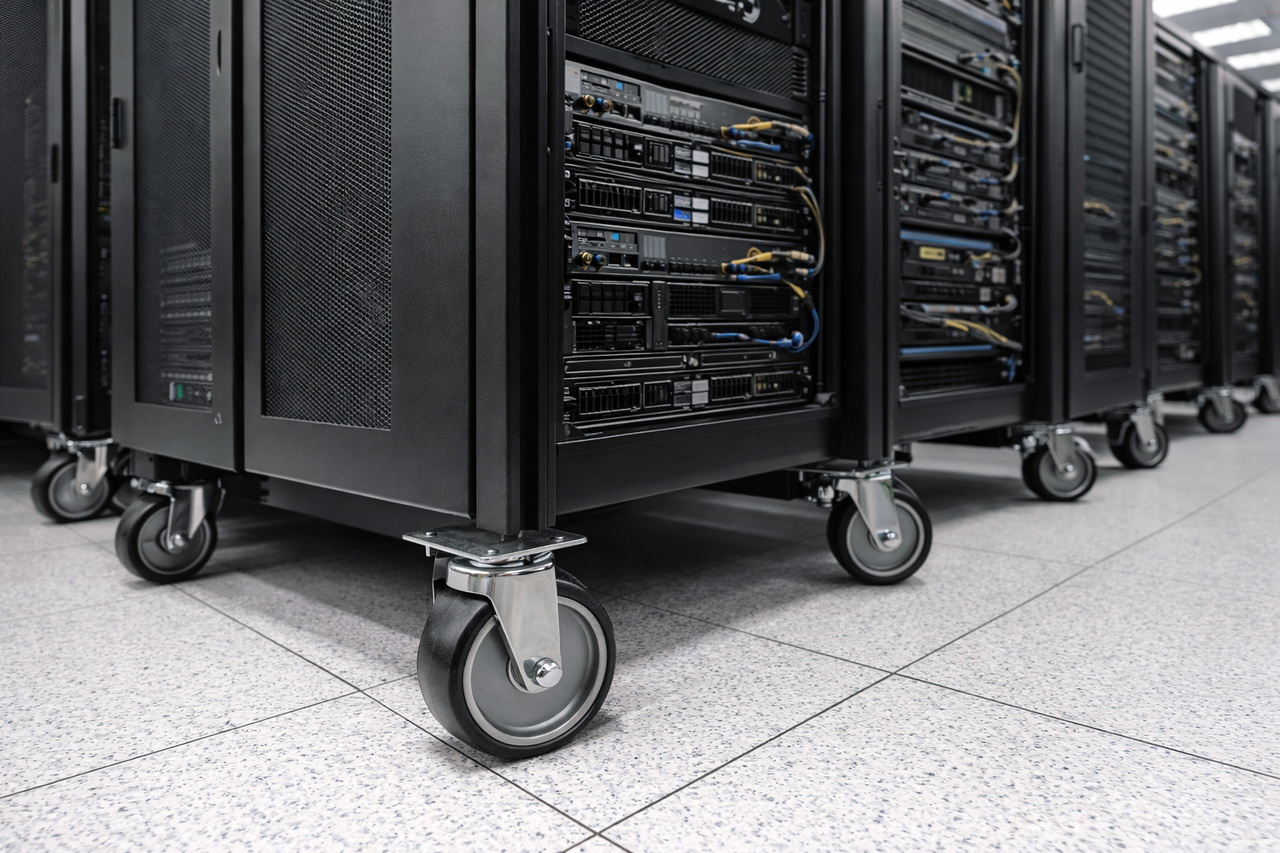

Integrating ESD Casters into a Complete System

An ESD caster is only one part of a complete grounding system. To work properly, it needs a continuous path from the object on the cart all the way to the building's ground. A break anywhere in this chain makes the system useless.

Here is the complete path to ground: 1.  Static Source (e.g., a component on the cart) 2.  ESD-Safe Cart Surface3.  Conductive Cart Frame4.  ESD Caster5.  ESD-Safe Flooring6.  Building Ground

All of these parts must be present and working. As an extra safety measure, we often recommend adding a drag chain to every cart. This chain provides a backup ground path. It is helpful if floors are dirty or if a caster temporarily loses contact. This practice aligns with ANSI/ESD S20.20 guidelines for creating a reliable static-safe area.

Maintenance & Testing: Verify Your Casters are Working

Buying esd casters for electronics manufacturing is not a one-time fix. They require simple maintenance and regular testing to ensure they continue to provide protection.

Regularly clean the caster wheels with an approved cleaner, such as isopropyl alcohol (IPA). This removes dirt, debris, and floor wax. A common failure point we see in facility audits is a buildup of grime on caster wheels. This layer of dirt acts as an insulator. It completely stops the caster's ESD properties. A simple cleaning schedule prevents this.

You should also test your casters as part of your regular ESD program audit. Use a surface resistance meter to check the connection. Test the resistance from the caster to the cart frame and from the caster to your ESD floor. This confirms the entire path to ground is working.

Conclusion: Making the Right Choice

Choosing the correct esd casters for electronics manufacturing is a critical step in protecting your products from static damage. They are essential casters to prevent static electricity in any modern facility.

Remember the key factors. Choose dissipative casters for sensitive electronics. Match the load capacity and material to your specific needs. Most importantly, make sure the casters are part of a complete and verified grounding system. ESD protection is an ongoing process, not just a purchase. It requires the right parts, proper integration, and consistent maintenance to be effective.

Frequently Asked Questions (FAQ) about ESD Casters for Electronics

1. Can I use ESD casters on a regular, non-ESD floor?

No. For them to work, esd safe casters for electronics must be used on an ESD-compliant floor (conductive or dissipative). The floor provides the path to ground. Without an ESD floor, the static charge has nowhere to go. The caster cannot do its job.

2. What is the difference between "anti-static" and "ESD" casters?

These terms are often used in the same way. Technically, "anti-static" means a material that resists building a charge. "ESD" or "dissipative" means a material that safely drains a charge away at a controlled speed. When protecting electronics, you need casters with proven dissipative properties (a resistance of 10^6 to 10^9 Ohms). An anti static caster wheel supplier can help you find the right product.

3. How often should I test my anti static casters for pcb assembly carts?

This depends on your company's ESD control plan. A good practice is to test them during audits, usually every 6 to 12 months. They should also be tested right away if a cart is thought to have been involved in an ESD-related product failure.

4. Do I need all four casters on my cart to be ESD-safe?

Yes. For a reliable and constant ground connection, all casters on the cart should be ESD-rated. Using a mix of ESD and standard casters creates an unreliable path to ground. This should always be avoided in an Electrostatic Protected Area (EPA).

5. Are there custom ESD casters for special equipment like SMT production line machines?

Absolutely. You can work with an esd caster wheel manufacturer to get custom esd casters for equipment. This is common for casters for smt production line machines or esd casters for clean room equipment. These can include special mounting plates, higher weight capacities, or materials that resist specific chemicals. This ensures you get the perfect solution.
