Wheel diameter is one of the most overlooked factors in industrial caster selection. Many buyers focus on load capacity and wheel material, yet wheel size has a direct impact on rolling resistance, maneuverability, vibration, and long-term caster life—especially under heavy loads.

In real industrial environments, selecting an undersized wheel often results in excessive push force, premature wear, and unnecessary safety risks.

Wheel Diameter and Rolling Resistance Explained

Rolling resistance is the force required to keep a wheel moving across a surface. In industrial caster applications, it is influenced by load weight, wheel material, floor condition, bearing quality, and—most importantly—wheel diameter.

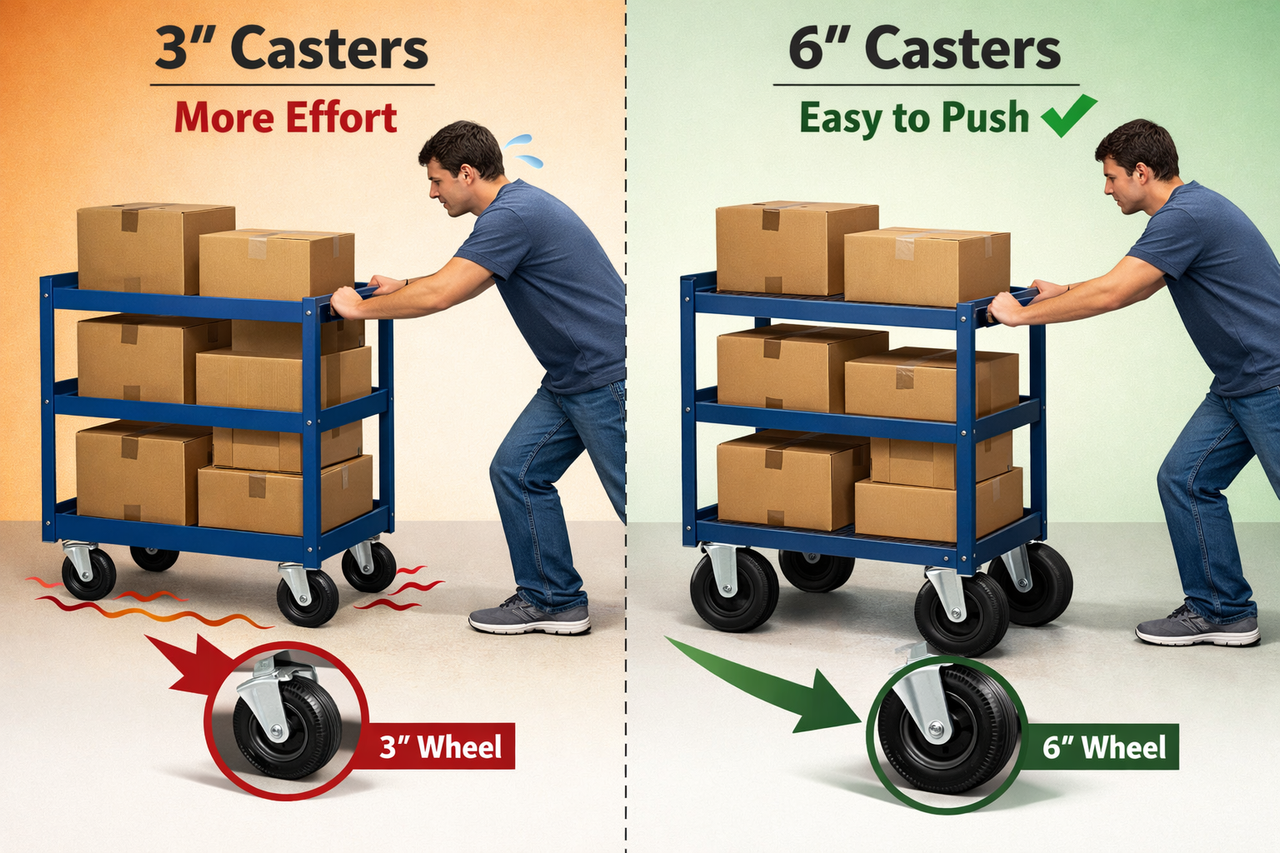

As wheel diameter increases, rolling resistance decreases. Larger wheels encounter surface irregularities at a shallower angle, which reduces the force required to maintain movement. Under heavy loads, this effect becomes even more noticeable.

Why Larger Wheels Perform Better Under Heavy Loads

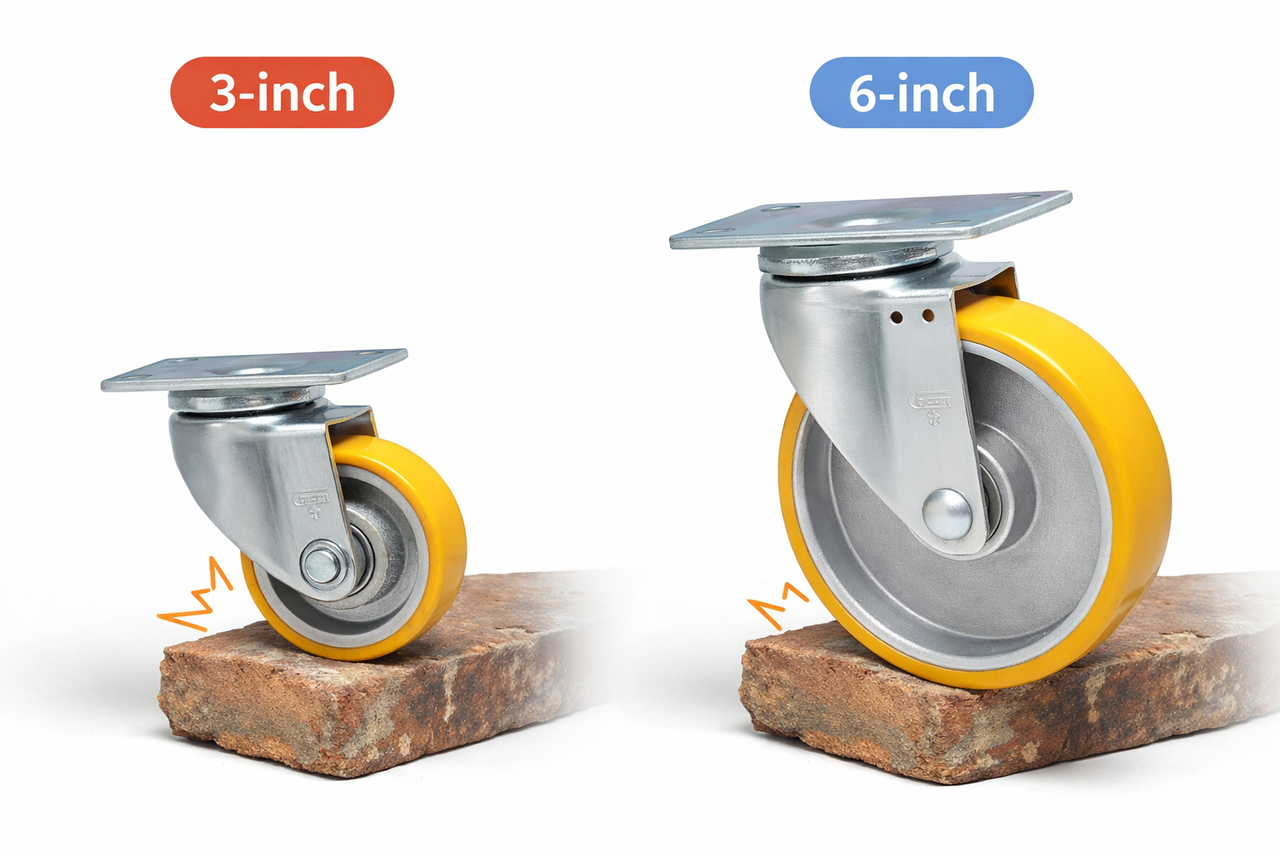

From a mechanical standpoint, larger wheels are better at overcoming floor imperfections such as expansion joints, cracks, debris, and weld seams. Smaller wheels must climb these obstacles more steeply, increasing starting force and transmitting higher shock loads into the caster frame.

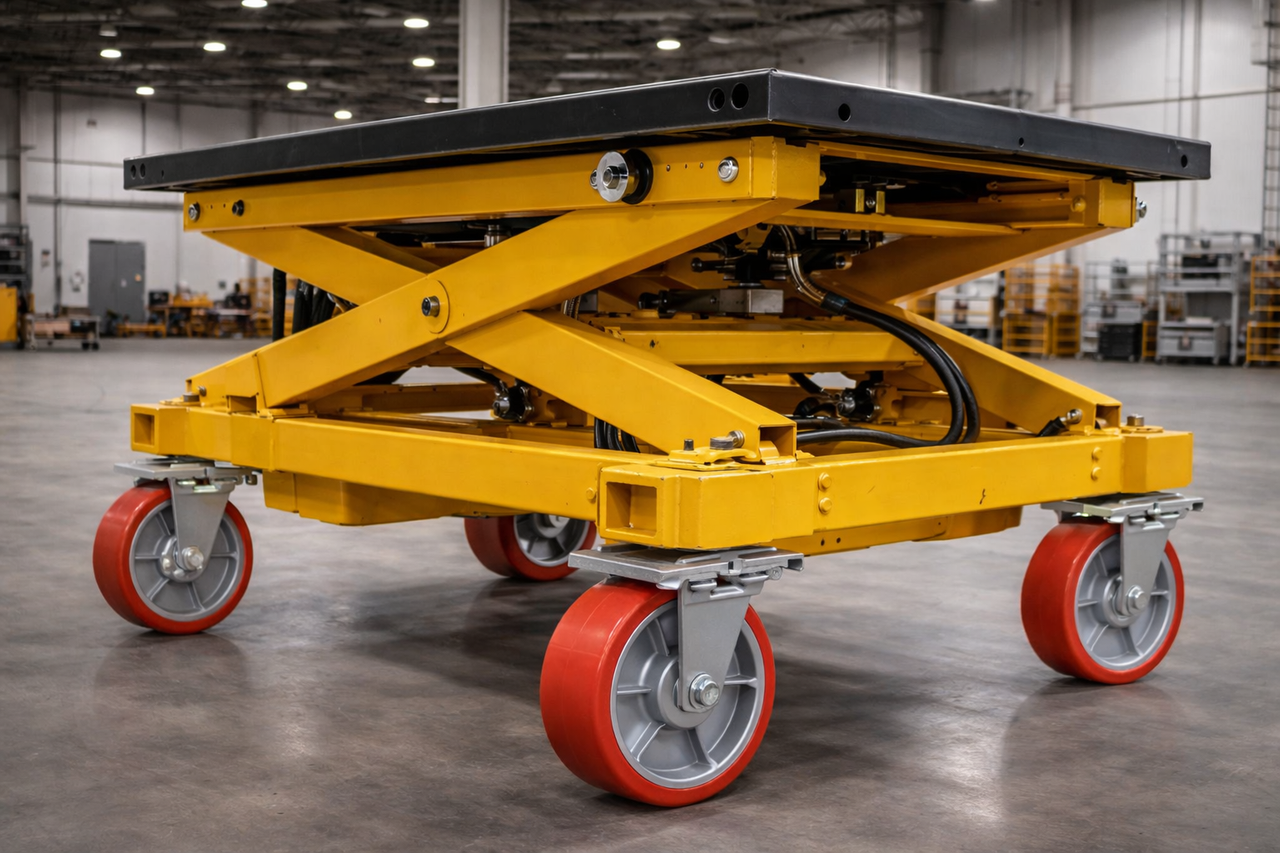

With larger wheel diameters, initial push force is reduced, shock and vibration are minimized, and long-term stress on bearings and frames is significantly lower. This is why heavy equipment and industrial transfer carts almost always benefit from the largest practical wheel diameter allowed by design constraints.

Floor Conditions and Bearing Quality: The Hidden Multipliers

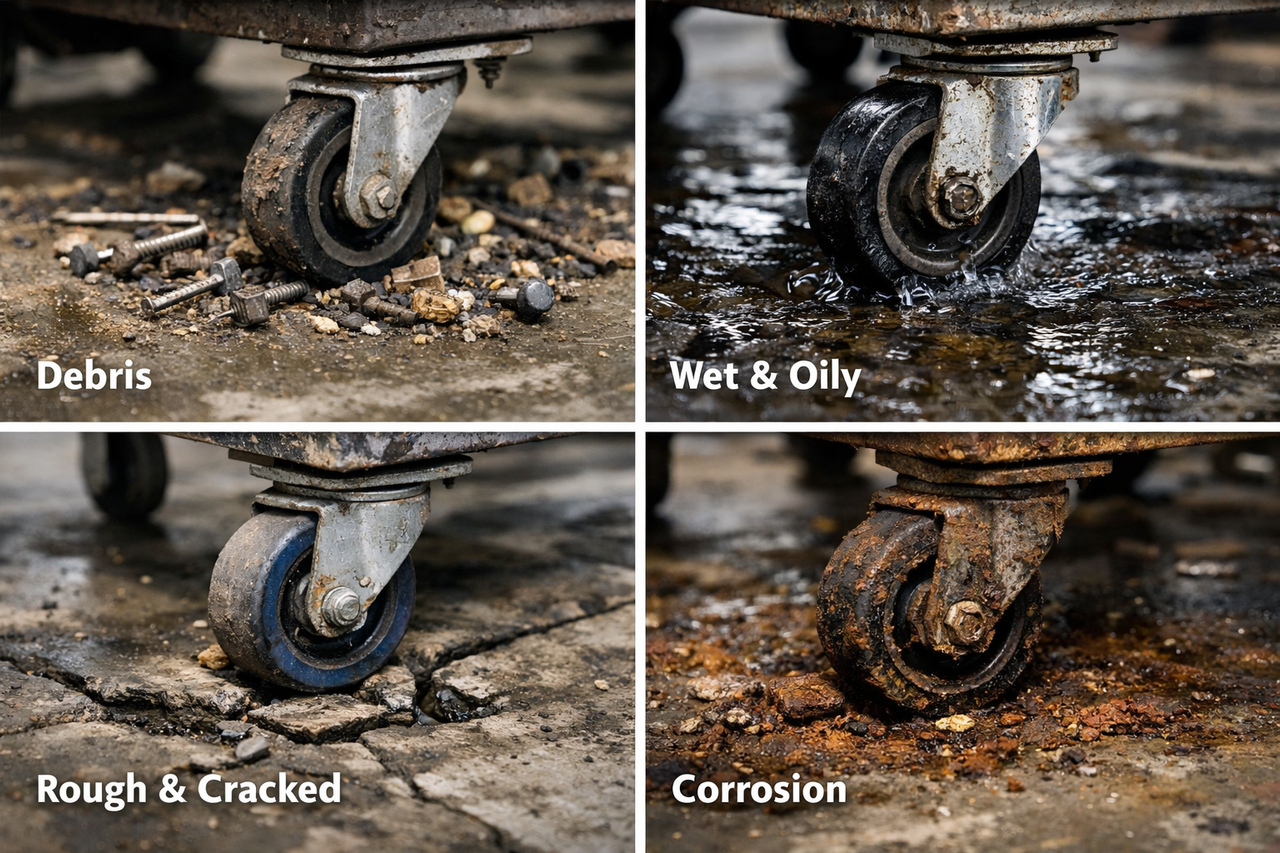

Floor condition significantly amplifies the importance of wheel diameter. On smooth epoxy or polished concrete floors, medium wheel diameters may perform adequately. However, on concrete floors with joints, minor damage, or uneven surfaces, larger wheels dramatically improve rolling performance and service life.

Bearing quality further multiplies this effect. Large wheels paired with precision ball bearings or tapered roller bearings roll far more smoothly than small wheels with basic bushings—even when both are rated for the same load. In heavy duty and extra heavy duty applications, wheel diameter and bearing design must be considered together.

How to Select the Right Wheel Diameter in Practice

When choosing wheel diameter for industrial casters, consider the total working load, floor flatness, movement frequency, and whether the equipment is manually pushed or towed. Acceptable push force and vibration levels should also be part of the evaluation.

• Total working load (equipment + payload)

• Floor flatness and obstacles

• Movement frequency and travel distance

• Manual push versus towing

• Acceptable push force and vibration level

If space permits, selecting a slightly larger wheel diameter is often one of the most cost-effective ways to improve performance, safety, and caster lifespan.

Wheel diameter is not just a dimensional parameter—it is a performance decision. In industrial caster applications, especially under heavy loads, choosing the correct wheel diameter reduces rolling resistance, protects equipment, and improves operator safety over the long term.
