Stop Caster Failure: The Importance of Using the 3-Wheel Rule for Load Calculation

Choosing the right casters for your equipment is a task that seems easy to do. But only one little calculation can be the primary cause of a major disastrous event. This little mistake turns into a big one causing companies to pay thousands for broken goods, equipment downtime, and staff casualties. Therefore, safety specialists always emphasize the importance of this issue. When you master the caster load calculation 3 wheel rule, you can protect yourself from these expensive troubles at the very beginning.

• Never Divide by Four: For a four-wheel cart, don't divide the total weight by four to find each caster's capacity. This is common but dangerous.

• Use the 3-Wheel Rule: Always divide the total weight (cart + max load) by three. This accounts for real-world uneven floors where one wheel can lift off the ground.

• Add a Safety Factor: Your answer must be multiplied by a safety factor (usually 1.3 to 2.5) to account for forces like speed, rough surfaces, and impact load.

• Prevent Failure: Only through correct load calculation can overload failure, wheel deformity, and cart overturns be avoided. This keeps workers safe and equipment is used for longer periods.

The Cost of a Million-Dollar Mistake: Why Total Weight Divided by 4 Casters Is Not Correct

It sounds like a sensible plan. You have a cart with four casters, and you know the total weight, so what you have to do is divide the total weight into four. This is one of the most frequent and ugly errors that occur in the field of material handling.

The formula seems too simple, but it only applies in a perfect case. It presumes a perfectly flat floor and a perfectly balanced load. Such a scenario does not exist in any of the workplaces, warehouses, and facilities.

Real-life situations break the logic of "divide by 4" right away. Here are some of the reasons that often cause one wheel to carry less weight or not to carry weight at all:

• Uneven Floors: Cracks, aged concrete, and slight inclines cause the cart to tilt.

• Thresholds & Ramps: Transporting the cart off a threshold or up a ramp, at least one wheel has to go off the surface.

• Debris: A small bolt, zip tie, or wood chip on the floor acts like a bump. This lifts a wheel.

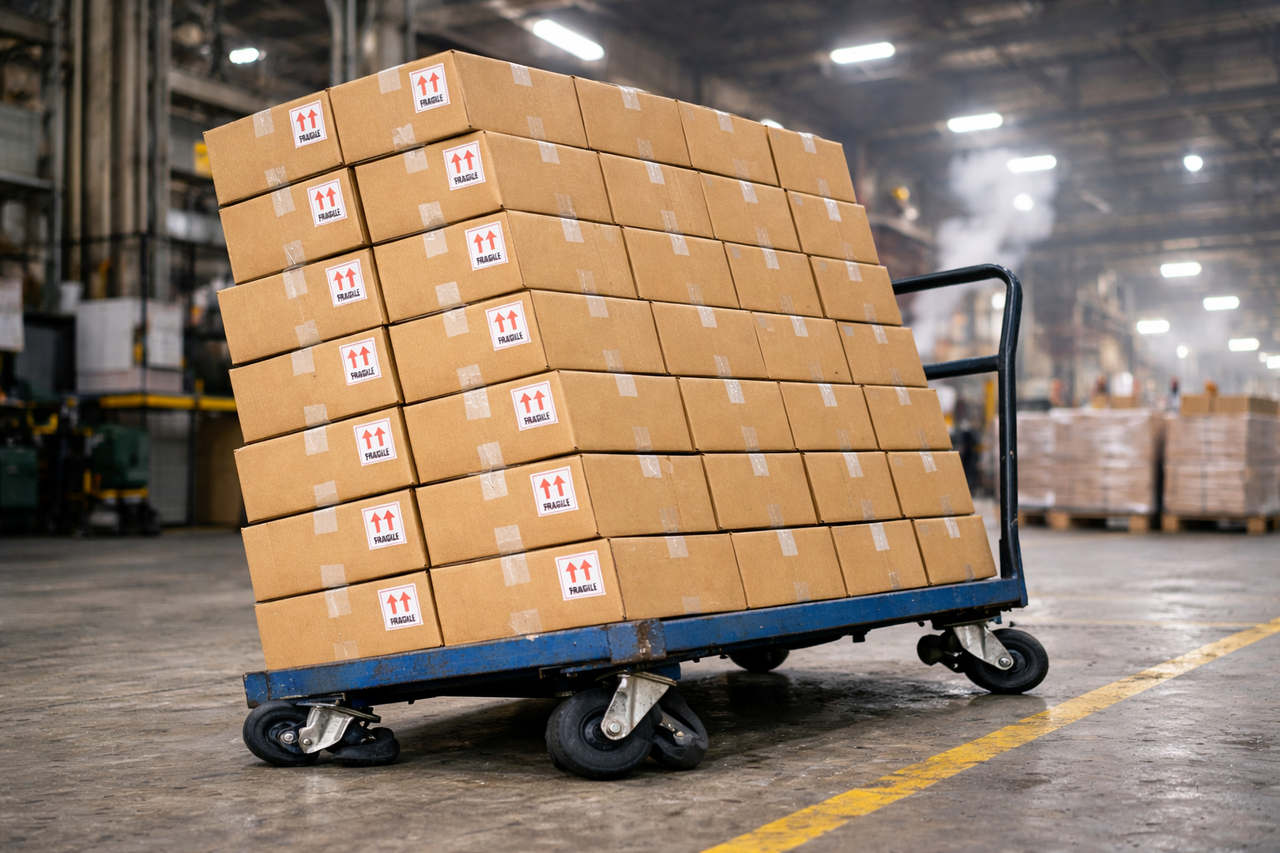

• An Uneven Load: Adding a heavy object to one side only of the cart will cause additional force on the casters underneath.

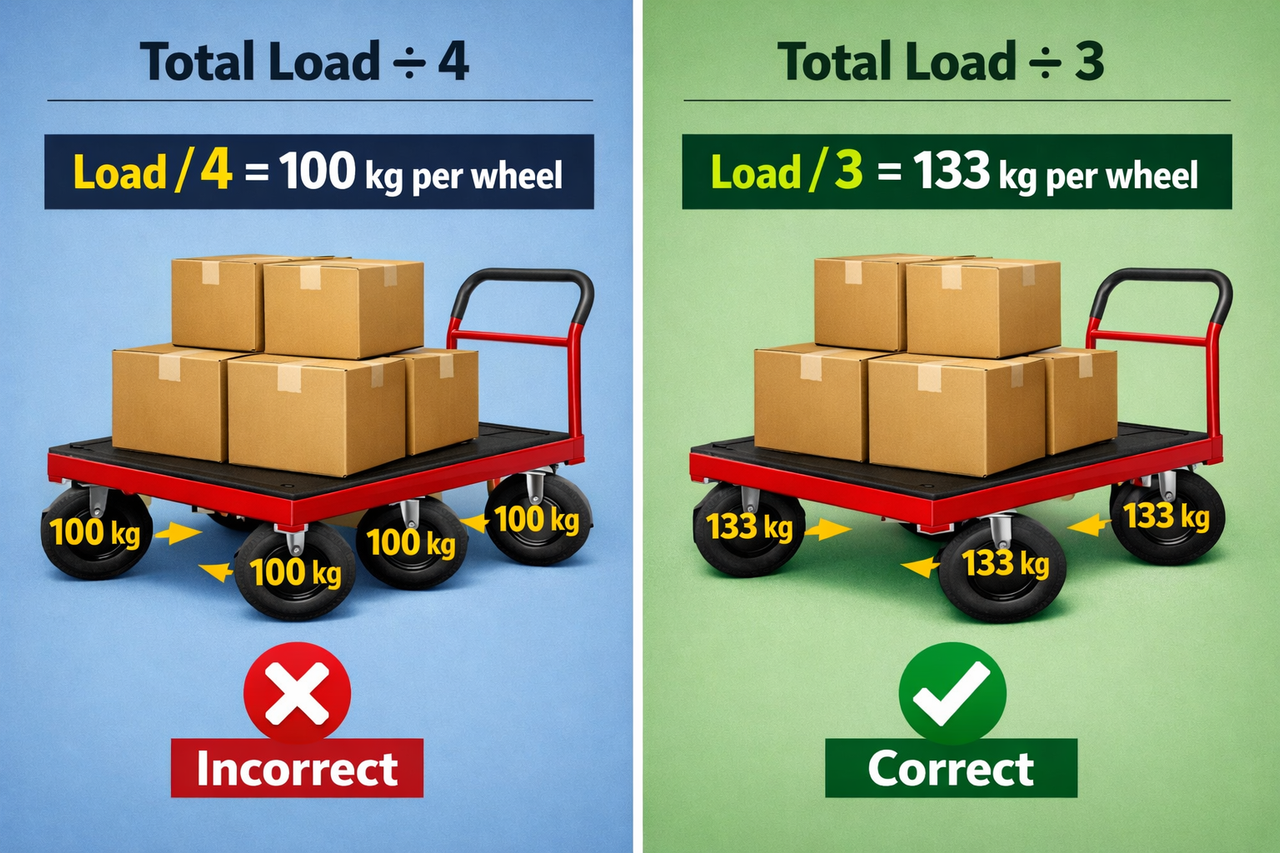

Have you ever observed a table leg shaking in a restaurant? Even if it has four legs, only three are in contact with the floor. The fourth one is either in the air or just touching it a little bit. That's how your cart acts. For this reason, it is so important to ask "Is the total weight divided into four wheels or three wheels?"

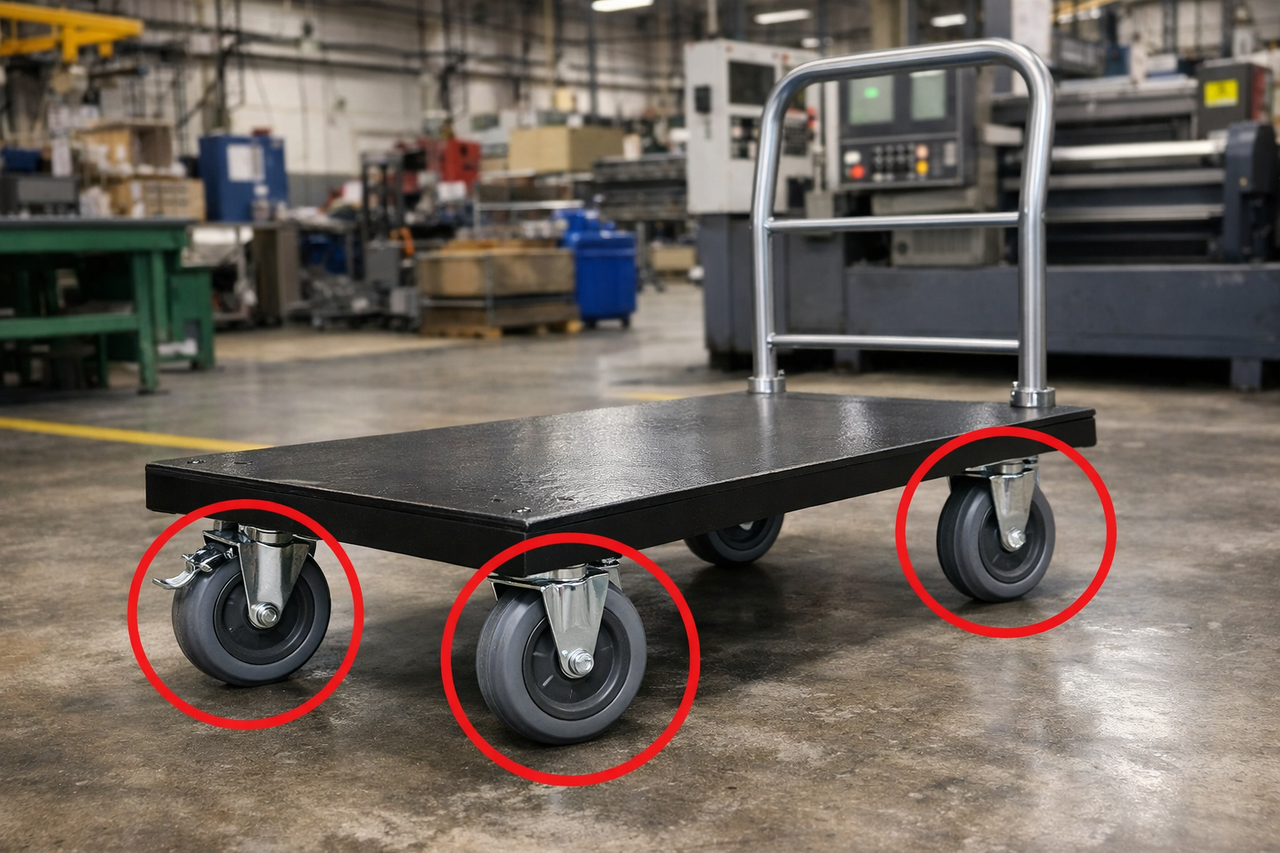

The 3-Wheel Rule: Your First Line of Defense Against Caster Overload

In order to avoid the problems, you need to use the correct basic formula. It is the caster load calculation 3 wheel rule. This formula is the common base for the industry because it represents quality.

Required Capacity per Caster = (Total Cart Weight + Maximum Load) ÷ 3

• The Impact Load: When a load hits an obstacle, like a floor crack, it does not only push the load's weight. It generates a sudden shock which is known as impact load. This force can be many times more than the static weight of the cart. It hammers the wheel and the bearings.

• Immediate Wheel Deformation: Most of the time the first part to fail is the wheel. For example, polyurethane wheels may suffer a permanent flat spot due to stress. A wheel that has this deformation makes the cart hard to move and it produces a constant "thump-thump-thump" as it rolls. With really hard wheels like phenolic or cast iron, the impact can crack or chip them.

• The Bearings Are Destroyed: The impact force sends the pressure from the wheel directly into the bearings. The massive pressure can break the ball bearings. It can also wreck the bearing race which in turn will cause the whole assembly to seize or destruct. You might hear a grating sound or see the wheel wobble badly during this process.

• Rig Failure: The last one to fail is the casters' metal frame which is also called rig or yoke. The impact load and the wobbling from the destroyed bearing will bend the steel legs of the rig or it will snap the swivel section completely. This might end in a total cart collapse.

The failure consequences aren't insignificant. Damage to the goods occurs. Hazardous substances can leak. Employees run a risk. Proper caster load calculation 3 wheel rule should not just be about the effectiveness of operations. It is equally a matter of safety.

ter Safety Factor Application

The three-wheel rule sets a secure baseline. But to create a top-level and absolutely perfect implementation you should solely include the load per caster safety factor. This calculation makes your equipment even safer.

A safety factor (SF) is a multiplier you add to your calculation. This intentionally over-rates the caster's required capacity. This way cart stresses are a bit more real.

Use the chart given below to ascertain the most suitable safety factor for your application.

Application Condition	Description	Recommended Safety Factor (SF)
Manual, Indoor	Low walking speed (< 3 MPH) on smooth floors.	1.3
Manual, Outdoor/Rough	Uneven floors, frequent thresholds, ramps.	1.5 - 1.8
Power-Towed (Low Speed)	Carts pulled by a tugger or forklift.	2.0
High Impact Load	Loads are dropped onto the cart; very rough terrain.	2.5 or higher

To use a load per caster safety factor is what separates a cart that merely works from one that functions without incident for the years.

The Classic Formula: The Step-By-Step Process of the Calculation

Now, let's put everything together. We will combine the caster load calculation 3 wheel rule with the load per caster safety factor. This gives us our final, professional-grade requirement.

This is the formula you should keep in mind:

Final Required Capacity per Caster = [ (Total Cart Weight + Maximum Load) ÷ 3 ] x Safety Factor

Let's move through an example.



• Scenario: Heavy duty cart used to transport machine parts around the factory and outdoors over a parking lot.

• Step 1: Determine Total Weight.

• Cart Weight: 250 lbs

• Maximum Load: 1,500 lbs

• Total Weight: 1,750 lbs

• Step 2: Apply the 3-Wheel Rule.

• 1,750 lbs ÷ 3 = 583.3 lbs

• This is our baseline capacity. Now we need to make it safer.

• Step 3: Select Your Safety Factor.

• The cart is used manually but on rough surfaces and outdoors.

• According to our chart, "Manual, Outdoor/Rough" suggests a 1.5 safety factor.

• Step 4: Calculate the Final Required Capacity.

• 583.3 lbs x 1.5 = 875 lbs per caster.

Finally, you would look into the manufacturer's load rating chart take a caster of at least 875 lbs. Always round up to the next available capacity. This ensures maximum safety and durability.

Be cautious of that just split the total weight by four. This overly simplified method cannot take into account the weight of the real things we discussed. It can put your equipment and staff at risk.

Conclusion: Build for Reality, Not a Perfect World

The most common mistake in caster selection is also the most dangerous. Dividing the total load by four wheels. This method ignores the reality of uneven floors, thresholds, and dynamic forces.

The solution is a two-step process. First, always use the caster load calculation 3 wheel rule as your foundation. This immediately builds in a basic level of safety. It answers the question of total weight divided into 4 wheels or 3 wheels.

Second, take the expert step of applying a load per caster safety factor. This crucial multiplier accounts for the unique demands of your application. From speed to impact load. By calculating for a three-wheel reality, you ensure your four-wheel cart is built for the real world. This prevents costly wheel deformation, overload failure, and safety hazards.

Frequently Asked Questions (FAQ)

1. What if my cart has six casters? Do I divide by five?

Yes, the principle is the same. For any cart with more than four casters, the standard safety rule is to divide the total weight by the number of casters minus one (n-1). For a six-caster cart, you would divide the total weight by five. After that, you must still apply the appropriate safety factor based on your application's conditions.

2. Does the 3-wheel rule apply even for very light loads?

While the risk of a major overload failure is lower with light loads, the principle still holds. Using the caster load calculation 3 wheel rule ensures smoother rolling and much longer life for your casters. This works even on office chairs or light utility carts. It helps prevent early wheel deformation and annoying wobbles.

3. Can't I just buy the highest-capacity casters available to be safe?

This seems like a safe solution, but it is not ideal. Over-specifying casters, especially with very hard wheels like steel or phenolic, can cause other problems. They can damage your floors, be very noisy, and give a harsh ride. This might damage sensitive cargo. The goal is to use proper calculation to match the caster to the job.

4. What is the difference between dynamic and static load capacity?

Static load is the weight a caster can hold when it is not moving. Dynamic load is the weight it can support while rolling. This is the number our calculation focuses on. A caster's dynamic load rating is almost always lower than its static rating. This is because it must handle the stress of rolling, swiveling, and impacts. Always use the dynamic load rating from the load rating chart for your calculations.

5. How does speed affect my caster load calculation?

Speed greatly increases the forces on a caster. The faster you move, the bigger the impact load when you hit an obstacle. This is why our safety factor chart recommends a higher multiplier for power-towed carts compared to those pushed by hand. If your application goes faster than 3-4 MPH, you should talk to a caster specialist. Standard calculations may not be enough.
