The Ultimate Caster Guide: Avoid Mounting Mistakes with Correct Measurements
We have all felt that frustration. You order new casters for your heavy cart. You wait for them to arrive. Then you find out they don't fit. The mounting holes are just a few millimeters off. Now your project stops. This guide prevents that exact problem. We will show you how to measure caster mounting plate dimensions and threaded stems before you buy. Getting these details right keeps you safe. It also saves you from a major headache. This guide covers everything from top plates to threaded stems and replacement wheels.
.png)
Key Takeaways
Plate vs. Pattern: The overall top plate size is not the same as the bolt hole pattern. You must measure both to get the right fit.
Stem Basics: For a threaded stem caster, you need three measurements. These are stem diameter, thread pitch (TPI or metric), and stem length.
Metric vs. Imperial: Casters use both systems. A 1/2" stem is not the same as an M12 stem. Using a caliper and thread gauge is the best way to be sure.
Don't Forget the Axle: When replacing just the wheel, you must measure several things. These include wheel diameter, tread width, hub length, and axle bolt size.

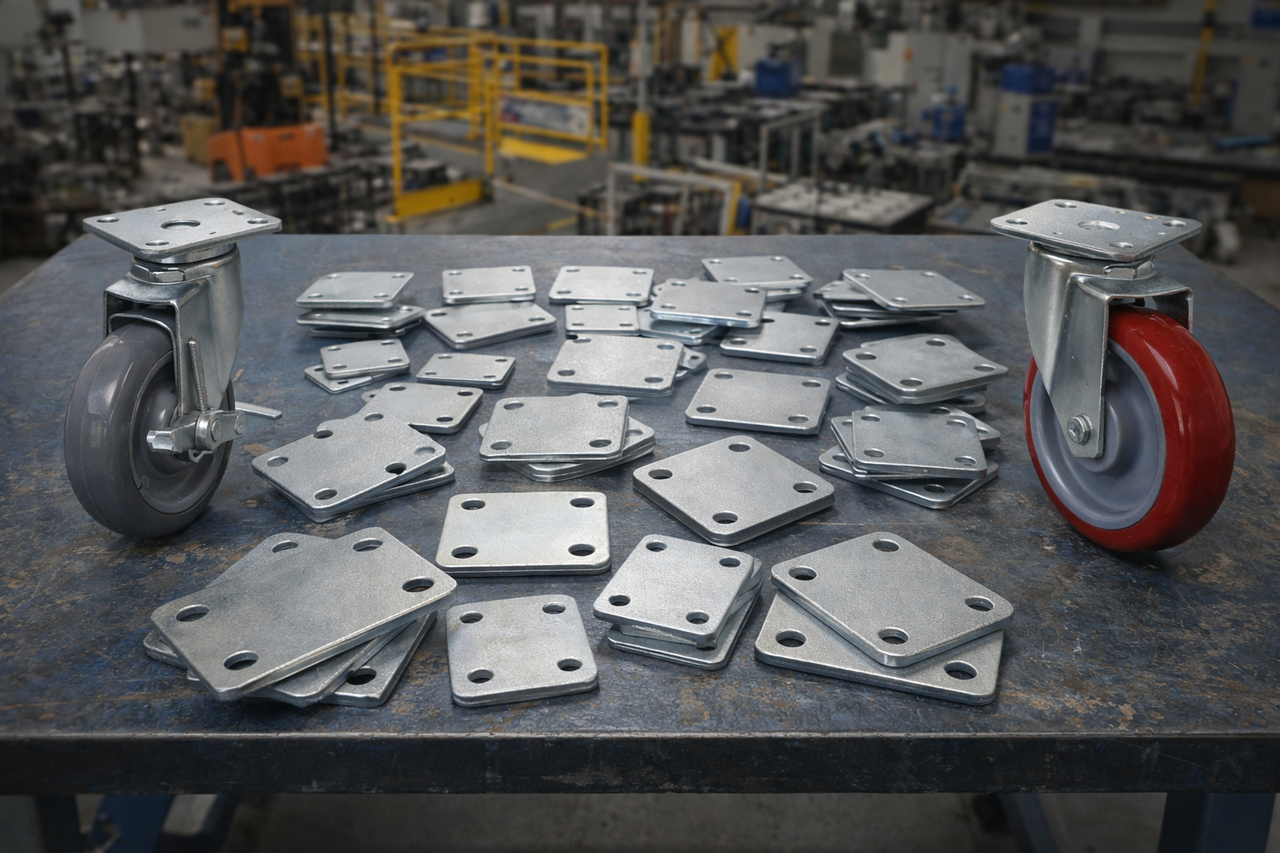

Understanding Plate Casters: How to Measure Top Plate and Bolt Hole Pattern
Plate casters are the most common type. You will find them on carts, workbenches, and industrial equipment. They attach with a flat metal plate and four bolts. To get the right replacement, you need to measure correctly.
Key Measurements for Plate Casters
There are two critical sets of numbers you need for any plate caster. The first is the top plate size. This is the overall length and width of the plate itself.
The second is the bolt hole pattern. This is the distance between the mounting holes. These two sizes are rarely the same. You need both to order the right part. Getting the caster mounting plate dimensions right is the first step.

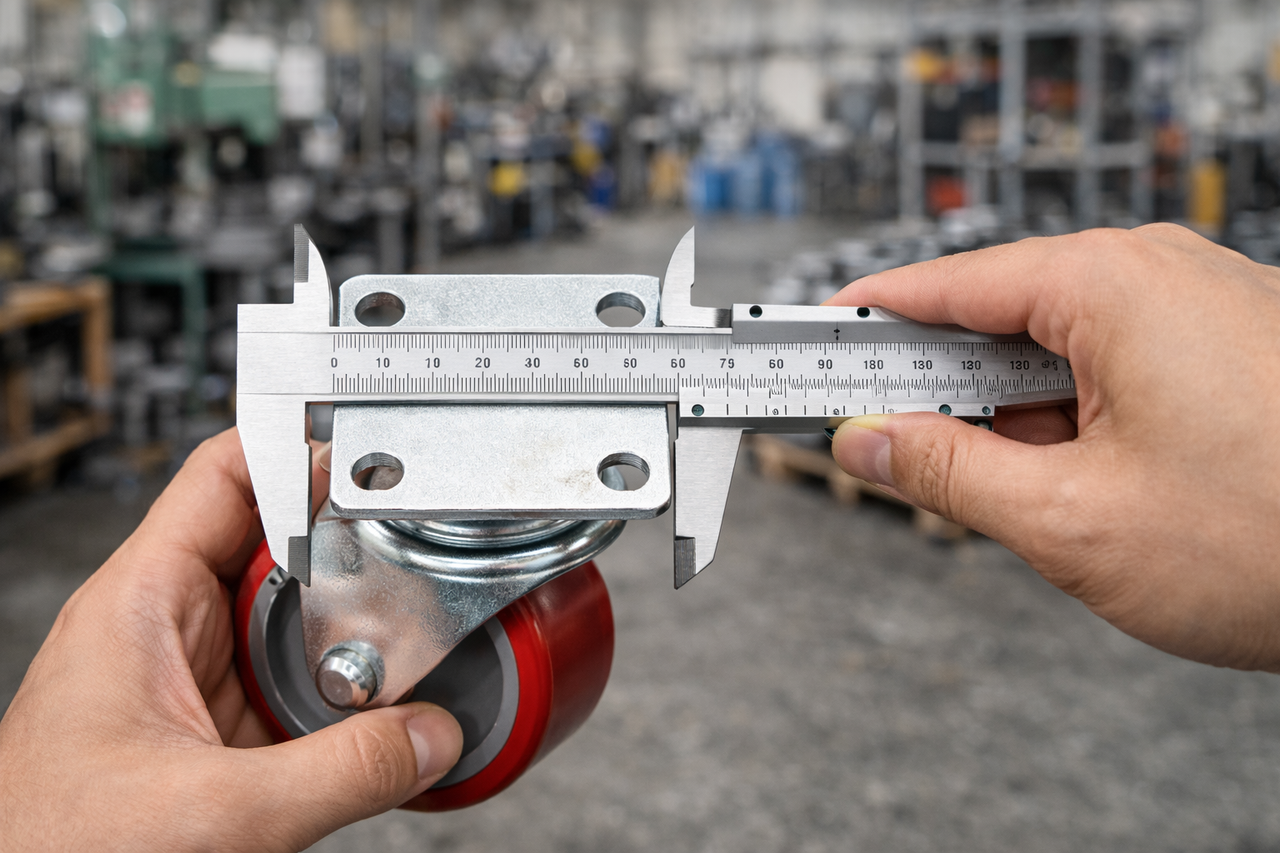

A Step-by-Step Measuring Guide
Here is our simple guide to measuring your plate casters. We do this every day in the shop.
Get the Right Tools. A simple tape measure will work. But a set of digital or dial calipers will give you much better results.
Measure the Overall Top Plate Size. Measure the full length and width of the metal plate. Write it down as Length x Width (like 4" x 4-1/2").
Measure the Bolt Hole Pattern. This is the most important step. Measure from the center of one bolt hole to the center of the next. Do this for both the length and the width. Some plates have long, slotted holes to fit multiple patterns. If so, measure the shortest and longest possible spacing.
Measure the Bolt Size. Use your calipers to measure the diameter of the bolt hole. This makes sure you use the correct fasteners for a secure fit.
Understanding Manufacturer Specs
When you look online, you will see dimensions written in a standard way. For example, a listing might say: "Top Plate: 4" x 4-1/2", Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"".
.png)
This tells you everything you need to know to match it to your measurements. There is a huge variety of sizes. So it's important to know yours. As you can see when learning Caster Mounting Options Guide, the industry uses many standard top plate sizes.
Understanding Stem Casters: Threaded Stems, Diameters, and Metric vs. Imperial
Stem casters are different. Instead of a plate, they have a single post or stem that mounts into a socket or hole. They are common on office chairs, medical carts, and store fixtures. The threaded stem is a very popular type.
What is a Threaded Stem Caster?
A threaded stem caster has a bolt-like stem that screws directly into your equipment. This provides a very strong and secure connection. However, it also means you must match the threads perfectly.
The Two Numbers That Matter
For any threaded stem, there are two numbers you must know. These are diameter and thread pitch.
The diameter is how thick the threaded stem is. The thread pitch is the number of threads per inch (TPI) for imperial sizes. For metric sizes, it's the distance between threads. Think of it like a nut and bolt. They have to match perfectly to work. Understanding the caster stem size thread is not optional.

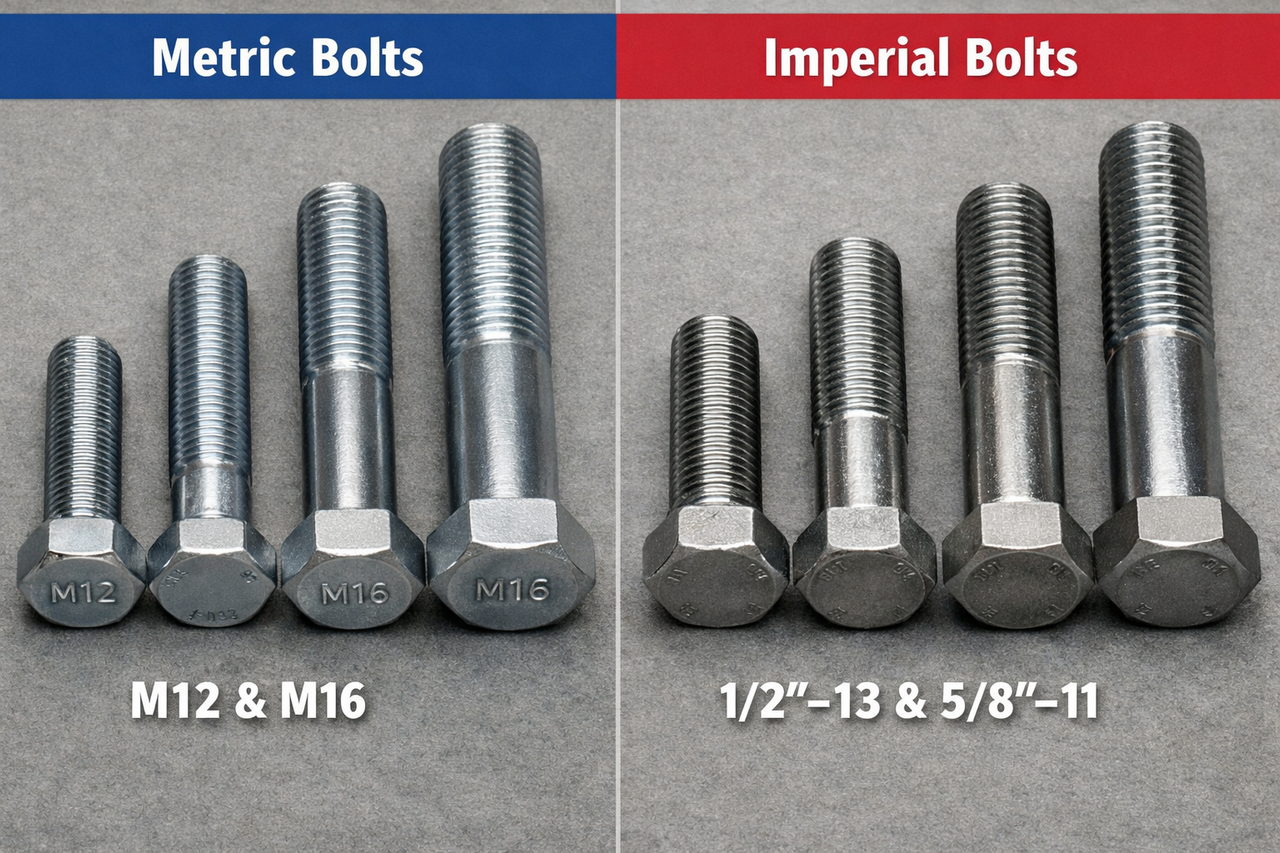

The Metric vs. Imperial Challenge
This is where many people make mistakes. A large number of products use the metric system. This is especially true for products from Europe and Asia. Products made in the USA often use the imperial (inch) system. They are not interchangeable.
Common imperial sizes are 3/8"-16 (meaning 3/8" diameter and 16 threads per inch) or 1/2"-13. Common metric sizes include M12 (12mm diameter) and M16 (16mm diameter). Metric casters also have their own pitch, like M12x1.75. While there is a wide variety of Plate Mount Casters, stem casters add another layer of complexity with these threads.
.png)
How to Measure a Threaded Stem
Measuring a threaded stem is easy if you follow these steps.
Measure Diameter. Use calipers on the outside of the threads for the most accurate reading. A tape measure can get you close. But calipers are best.
Find Thread Pitch. The best tool for this is a thread gauge. If you don't have one, you can carefully count the threads within a 1-inch section for an imperial stem.
Measure Stem Length. Measure from the base of the stem to the very tip. Start just under where it meets the caster body.
The Ultimate Pre-Purchase Measurement Checklist
Before you click "buy," run through this final checklist. It brings together all the key caster mounting plate dimensions and stem measurements in one place.
| For Plate Casters | Record Your Measurement |
|---|---|
[ ] Overall Top Plate Size: | __" L x __" W |
[ ] Bolt Hole Pattern (Center-to-Center): | __" L x __" W |
[ ] Mounting Bolt Diameter: | __" or __mm |
| For Threaded Stem Casters | Record Your Measurement |
|---|---|
[ ] Stem Diameter: | __" or __mm (e.g., 1/2" or M12) |
[ ] Thread Pitch (TPI or Metric Pitch): | __ TPI or __mm |
[ ] Stem Length: | __" or __mm |
| For ALL Caster Replacements | Record Your Measurement |
|---|---|
[ ] Wheel Diameter: | __" |
[ ] Load Capacity Needed (per caster): | __ lbs/kg |
[ ] Overall Height (Top of mount to bottom of wheel): | __" |
Pro-Tip: Take a photo of your measurements next to the ruler or caliper. This can be a huge help if you need to contact a supplier for help. It removes all doubt.
Beyond the Mount: What to Know About Replacement Wheels and Axles
Sometimes, the caster mount and swivel mechanism are perfectly fine. But the wheel is worn out. In these cases, you can save money by ordering just replacement wheels.
.png)
When to Replace the Wheel
The caster yoke is the metal fork holding the wheel. If it swivels smoothly and is not bent or cracked, just replacing the wheel is a great option. It is faster and costs less.
Critical Wheel Measurements
To get the right replacement wheel, you need more than just the wheel diameter.
Wheel Diameter & Tread Width: These are the two most obvious measurements. Measure the wheel's full height and the width of the part that touches the floor.
Hub Length: This is the width of the wheel through its center hole. The hub must fit snugly inside the caster yoke without too much side-to-side play.
Axle Bolt Size: This is a critical and often forgotten measurement. It is the diameter of the bolt that holds the wheel in the yoke. A 1/2" axle bolt size is common. But it is not universal. You must measure your old axle to make sure the new wheel will fit.
Reading the Signs of Wear
Not sure if you need new wheels? Look for these clear signs.
Cracked or chunked tread material.
Flat spots on the wheel from being dragged while locked.
A wobbly or noisy wheel. This means the bearings are worn out.
Tread that is separating from the wheel core.
Conclusion: Measure Twice, Buy Once
The old saying holds true for casters: "measure twice, buy once." Taking a few minutes to get accurate measurements will save you time and money. It also saves you the frustration of a delayed project.
Remember the key measurements. For plate casters, you need the top plate size and the bolt hole pattern. For a threaded stem, you need the diameter, thread pitch, and length. By carefully checking these caster mounting plate dimensions, you can order with confidence. You'll get the right parts the first time.
Frequently Asked Questions (FAQ)
What's the most common mistake when buying replacement casters?
The most common mistake is confusing the overall top plate size with the bolt hole pattern. People often measure the plate and assume the holes will line up. They end up with a caster that doesn't fit. Always measure both dimensions separately.
How do I know if I need metric or imperial threaded stem casters?
There's no foolproof visual trick. The best way is to use a thread gauge. If you don't have one, try carefully threading a known metric or imperial nut onto the stem. For example, if a standard 3/8" nut from a hardware store fits, you have an imperial stem. If it doesn't, you likely have a metric stem (like M10 or M12).
Can I drill new holes in my equipment if the bolt hole pattern doesn't match?
This is possible on some equipment (like a wooden workbench). But we strongly advise against it for metal carts or machinery. Drilling new holes can weaken the structure. It can also compromise the safety of the equipment, especially under heavy loads. It's always best to find a caster with the correct bolt hole pattern.
What tools do I need to measure caster dimensions accurately?
For basic measurements, a good tape measure or ruler will work. However, for maximum accuracy, we highly recommend a digital or dial caliper. This is especially true for stem diameters and bolt sizes. For threads, a thread pitch gauge is the ideal tool.
If I'm only replacing the wheel, is the axle bolt size standardized?
No, the axle bolt size is not universally standardized. While many casters use 1/2" or 3/8" axles, it varies by manufacturer and duty rating. You must measure the diameter of your existing axle bolt before ordering a replacement wheel. This ensures a proper and safe fit.
