The Essential Buyer's Guide for Leveling Casters in Heavy-Duty Equipment

Is your heavy equipment not level? Is your current arrangement not working well? Do you need height adjustment? Many facility managers and engineers feel great dissatisfaction and frustration with casters that move while they should stay put. This situation creates safety risks and work problems. The solution is a unique part designed for both movement and total fixation: the adjustable height leveling caster. This guide will lead you through the process of making the best choice and finding a manufacturer for high-quality adjustable height casters.

Key Takeaways*   Leveling casters provide the combination of mobility and stability that is so needed in equipment - a wheel and an adjustable foot pad in one unit. *   To determine the load capacity you need, divide the total weight of your equipment (plus its maximum load) by three, not four. *   The main mounting types are threaded stem (for legs) and top plate (for flat surfaces). *   The selection of the right wheel material, such as nylon or polyurethane, is based on the type of floor and the load. *   Look for material information that is clear, and technical support, and choose the supplier with custom options when selecting a leveling casters supplier.

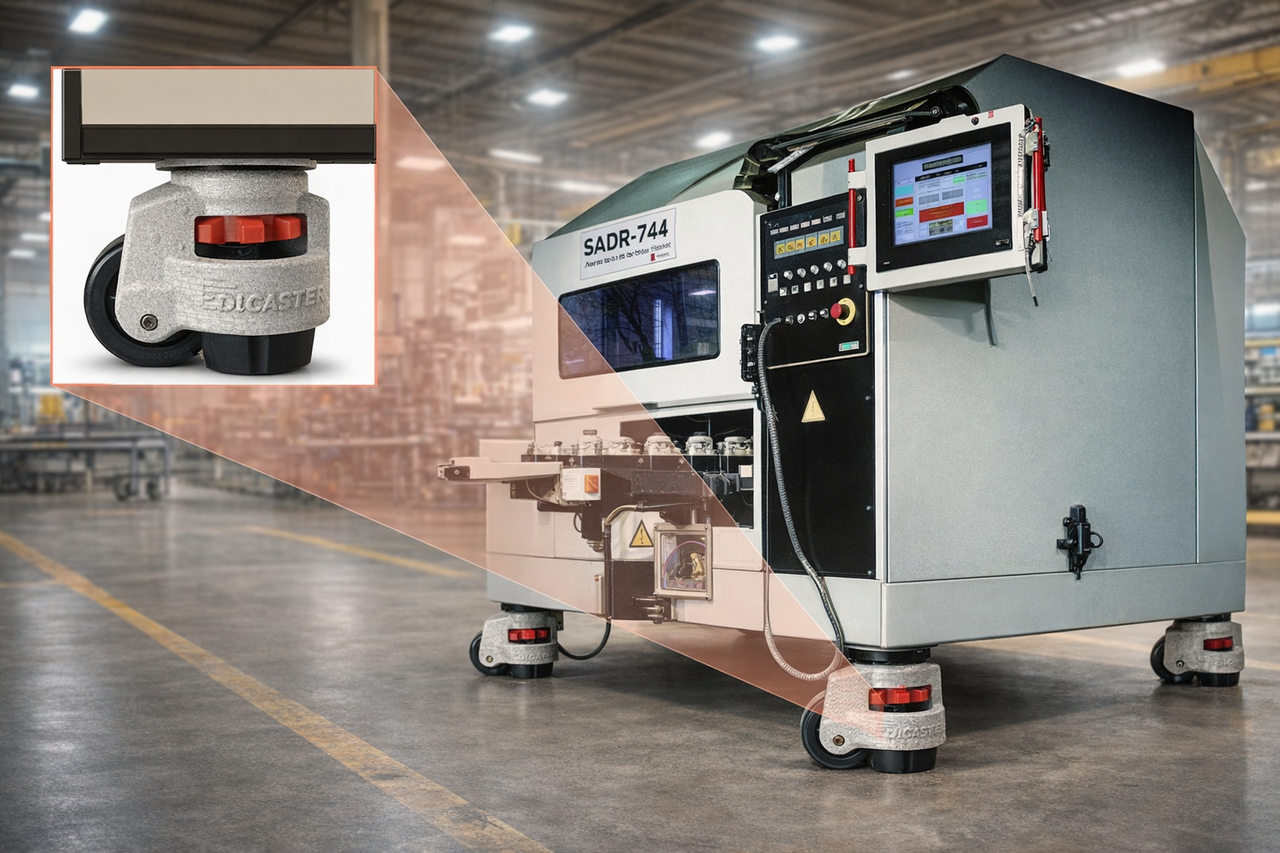

What Are Adjustable Height Leveling Casters? The Dual-Function Solution

Adjustable height leveling casters are an innovative solution for both mobile and motionless equipment. They unite a rolling wheel with an adjustable foot pad.

You can easily roll your equipment right into place. Then, you apply the adjustable foot pad. This, in turn, lifts the wheel off the ground. The equipment becomes completely stable and level. This locking plus leveling dual functionality is the most important factor.

Mobility and Stability in a Single Package

The design solves many problems frequently encountered in workshops and factories. It allows you to replace two parts - the separate wheels and leveling feet - with just one single component.

• Get Perfect Leveling: The adjustable foot pad allows you to correct uneven floors. This ensures your equipment will be perfectly level.

• Better Stability: Stop wobbling and vibrating. This is especially important for sensitive machines, inspection tables, and workstations.

• Quick Mobility: Transport heavy equipment easily for cleaning, maintenance, or rearranging your facility.

• Better Safety: Prevent the unexpected movement of heavy machines. This will protect humans and costly equipment.

Types of Leveling Casters: A Comparative Analysis

Leveling casters possess unique characteristics. Knowing the types of leveling casters will help you come up with the perfect fit for your particular need. The two main differences are in their mounting method and the adjustment way.

Mounting: Threaded Stem vs. Top Plate

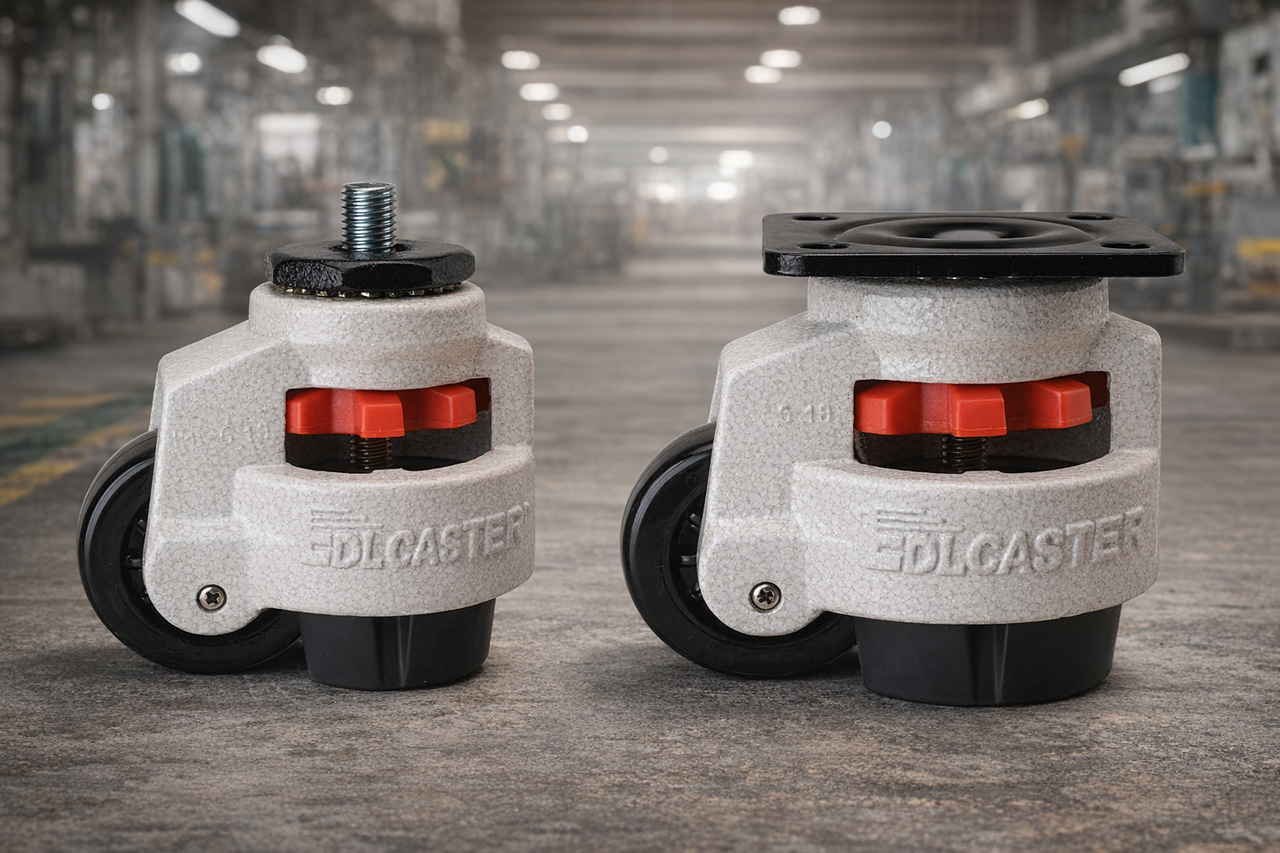

The threaded stem leveling caster and the top plate caster are two types of the most common mounting styles.

A threaded stem is a bolt that screws directly into a threaded hole on your equipment's legs or frame. These are well-suited for equipment that already has predrilled mounting holes. They are available in common sizes, such as M12 and M16.

A top plate is, simply put, a metal flat plate having four bolt holes. You will need to attach it to the bottom part of a flat surface, such as that of a workbench or a large machine base. This method has the advantage of spreading the load over a wider area.

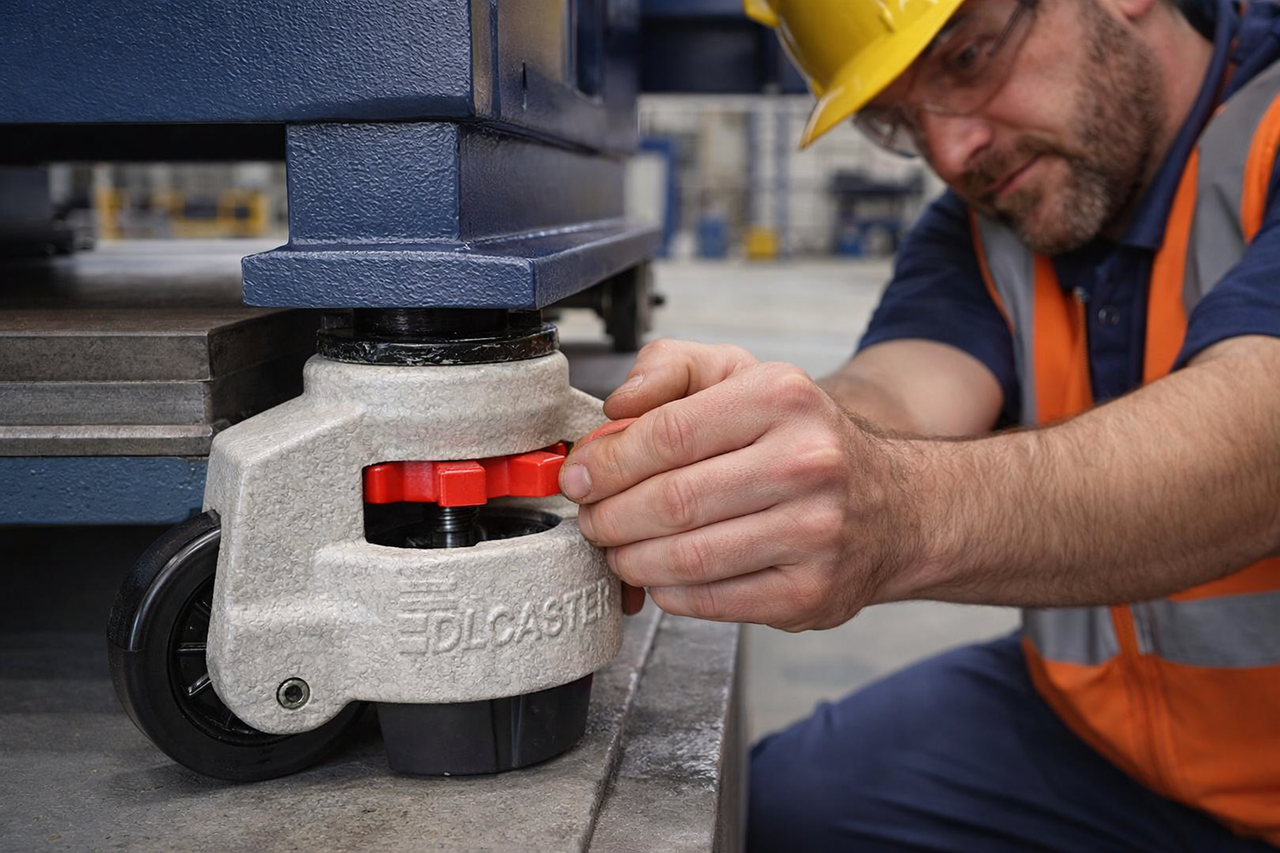

Adjustment Mechanisms

Fine height adjustment mechanisms are an important aspect of leveling casters.

On lighter-duty casters, a thumbwheel or a knurled knob is a commonly found item. This mechanism allows for easy, no-tools-required adjustments. In contrast, heavy-duty leveling casters usually need tools, such as wrenches or hex nuts. This is the way to promote safety in lifting and leveling heavy loads. Some modern designs also use a ratchet handle, which improves convenience and speed of adjustments.

Feature Combinations

Most leveling casters use a swivel design. This means they allow equipment to be easily steered into the required position, then the leveling feature takes charge.

The locking and leveling dual function is the principal feature. When the adjustable foot pad is extended, it completely lifts the wheel off the floor. This not only levels the unit but also gives it the highest lock security. This prevents any movement.

Feature	Threaded Stem Caster	Top Plate Caster	Best For...
Installation	Screws into a threaded hole	Bolts onto a flat surface	Equipment with legs or specific mounting points vs. large, flat-bottomed equipment.
Load Distribution	Concentrated on the stem	Distributed across the plate	Lighter to medium-duty vs. heavy-duty applications.
Flexibility	Easy to replace if thread matches	Very secure, less prone to loosening	Standardized equipment vs. custom-built workbenches.

Choosing the Right Heavy-Duty Leveling Caster: A 5-Step Checklist

The wrong caster can be a reason for the equipment damage and even safety hazards. Use this simple checklist to make sure you select the correct heavy-duty leveling caster for your application.

Step 1: Calculate Your Total Load Capacity

This is the most critical step. Do not simply divide your equipment's weight by four. To be safe, use this formula: (Total Weight of Equipment + Maximum Load) / 3 = Required Capacity Per Caster.

We divide by three because on an uneven floor, one caster might lift off the ground. This makes sure the other three casters can safely support the entire load. This is a standard safety practice when selecting leveling casters for industrial equipment.

Step 2: Match the Mounting Type to Your Equipment

Look at your equipment. Does it have legs with threaded holes? If so, measure the diameter and thread pitch to find a matching threaded stem leveling caster. If it has a flat metal or wood base, a top plate caster is the better choice. Measure the bolt hole pattern to make sure it fits perfectly.

Step 3: Choose the Right Wheel Material for Your Floor

The wheel material affects both floor protection and rolling ease.

• Nylon: A very hard and stiff material that moves easily on smooth concrete and doesn't mark it. It's a great all-around choice in many manufacturing settings.

• Polyurethane: A quieter material that adds extra protection to delicate floors like tile or wood.

• Cast Iron/Steel: A choice for extremely heavy loads where the floor is not a concern.

Step 4: Determine the Required Adjustment Range

How uneven is your floor? You need to choose a caster with an adjustment range that can handle it. If you need to dock a piece of mobile equipment to a stationary machine, you'll need enough adjustment to match the heights perfectly. Most leveling casters offer at least one inch of fine height adjustment.

Step 5: Consider the Operating Environment

Where will the equipment be used? For cleanrooms, food processing, or medical labs, you may need stainless steel casters to prevent rust and contamination. If the equipment will be near high temperatures, you'll need a caster with a special high-temp wheel. As experts note,leveling casters are a reliable solution for stabilizing equipment across many different industries, so be sure to match the materials to your specific environment.

Evaluating an Adjustable Height Caster Manufacturer or Supplier

Finding the right part is only half the battle. You also need to find a reliable partner. A good adjustable height casters manufacturer or leveling casters supplier will provide much more than just a product. Telling a true height adjustable caster feet factory from a simple reseller is key.

What to Look For in a Leveling Caster Supplier

• Material Quality and Transparency: A good manufacturer will tell you exactly what their casters are made of. They will specify the grade of steel, the type of nylon, and other material details.

• Manufacturing Certifications: Look for certifications like ISO 9001. This is an international standard for quality management systems. This means the company has proven processes for consistent quality control.

• Technical Support and Expertise: Can you call and speak with someone who understands your problem? A great supplier has engineers on staff who can help you select the right product, not just a call center reading from a script.

• Customization Capabilities: What if you need a non-standard stem length or thread type? A true factory can often handle custom requests, while a distributor is limited to what they have in stock.

• Product Range and Availability: A supplier with a wide range of heavy-duty industrial casters is likely a specialist. This shows they have deep expertise in mobility and stabilization solutions.

• Case Studies and Customer Reviews: Look for proof that they have solved problems for other customers. Reviews and case studies can give you confidence in their ability to deliver.

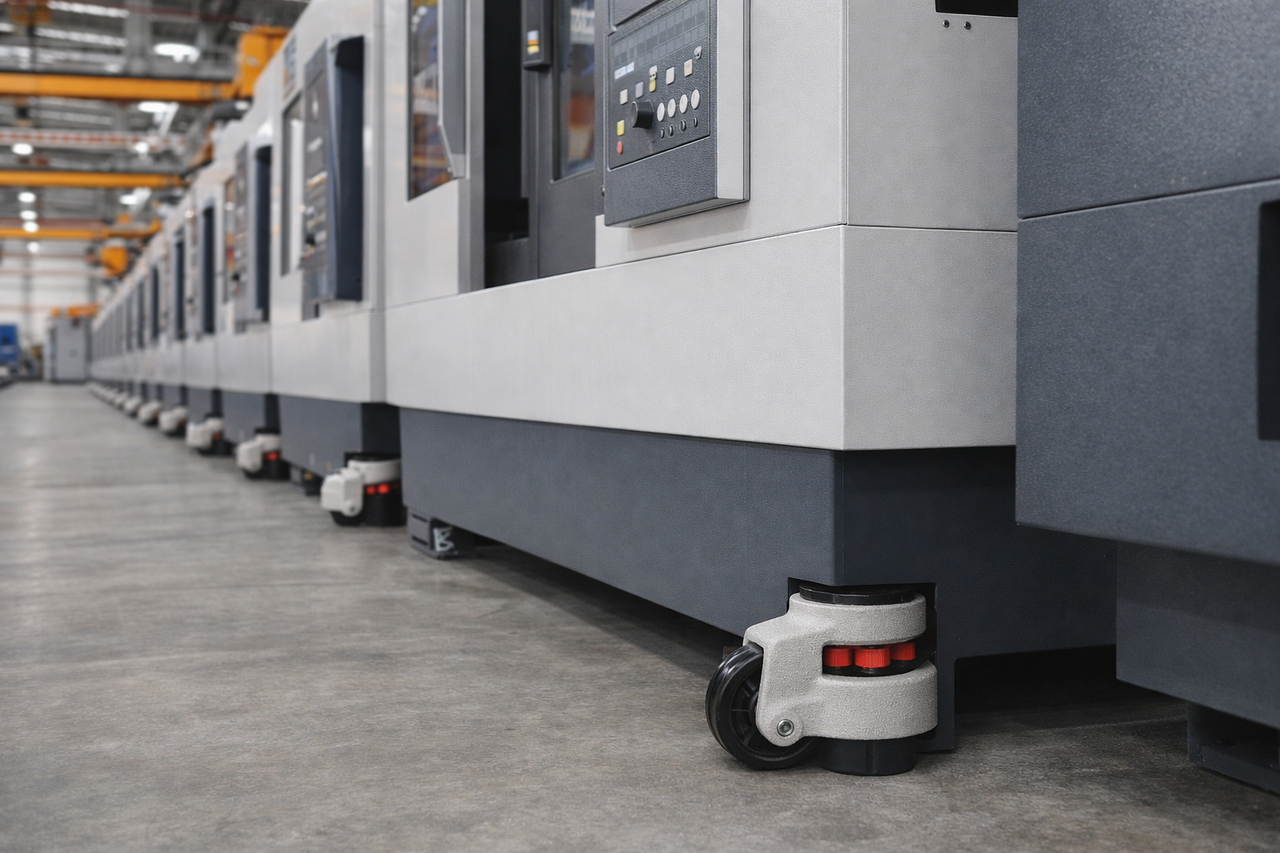

Common Applications for Leveling Casters

Leveling casters are used for industrial equipment in a wide range of applications. Their wide application makes them a popular choice for many professional settings.

• Industrial Workstations and Workbenches: Besides providing stability for precision tasks, they allow the workstations to be moved easily for cleaning or layout changes.

• Inspection Tables and CMM Machines: A level surface on casters for inspection tables is a must for accurate measurements.

• Medical and Laboratory Equipment: Movement between rooms is critical, but the equipment needs to be 100 percent stable during operation. For these applications, EDL GD Series Leveling Casters for Industrial Equipment are a good alternative because they have a sleek look and a long life span.

• Server Racks and Electronics Cabinets: They make it possible to roll heavy racks out for back panel access and then securely lock them in place.

• Retail Displays and Kiosks: Easily placed in a store and for the sake of customer safety, allowing them to be level.

FAQ: Your Questions on Leveling Casters Answered

The following are answers to common questions about selecting and using leveling casters.

What is the difference between a leveling caster and a total-lock caster?

A total-lock caster locks both the wheel from rolling and the swivel from turning. But, it does not adjust height or level the equipment. A leveling caster provides its locking and leveling dual functions in a superior way by an adjustable foot pad lifting the wheel off the floor, thus making the unit completely stationary.

How do I calculate the load capacity I need for heavy-duty leveling casters?

To be sure, add the weight of your equipment to the maximum weight you will ever put on it. Then, divide that total number by 3. This is a safety margin that will ensure that even on an uneven floor the casters will be able to handle the load without any failures.

Can I install leveling casters on my existing equipment?

Yes, in most cases. For equipment with a flat base, you can use top plate casters by drilling holes and bolting them on. If your equipment has legs, a threaded stem leveling caster is a great option. You may need to drill a hole and install a threaded insert if one doesn't already exist.

Is a threaded stem or a top plate mount stronger?

For very heavy-duty applications, a top plate mount is generally considered stronger because it distributes the load over a larger surface area. However, a correctly sized threaded stem is extremely strong and more than sufficient for the vast majority of industrial equipment and workstations.

Why won't my equipment stay fixed even with leveling casters?

This is a common issue when casters move when they should stay fixed. It typically happens for two reasons. First, the adjustable foot pad might not be extended enough to lift the wheel completely off the floor. Second, the caster's load capacity may be too low for the equipment, causing the adjustment mechanism to slip. Always ensure the wheel is clear of the floor and you have chosen a caster rated for your total weight.
