Get Rid of Wobble: The Guide to Low Height Heavy Duty Casters for Stable Equipment

Heavy equipment has been largely facing a difficult issue. Machines as simple as vending units, arcade cabinets, and display kiosks can become a little bit shaky. They tend to move about a bit when you try to shift them. In worse cases, they can easily be tipped over. This is a threat to safety. It is a clear sign of a design problem.

The majority of the time, the issue is that the center of gravity is high. Tall casters make wobble worse. You need a stable low base to fix this.

This is exactly why low height heavy duty casters help. They are the most practical solution. These types of wheels establish a strong and low foundation. They eliminate the wobble and the tipping hazard. This, in turn, makes your equipment much safer and more professional.

In this guide, you will find out all the details on these basic elements. You will learn how to buy and install them.

The Important Information

• Make Equipment Stable: A low profile caster wheel lowers the center of gravity of your equipment. This is the prime method of eliminating wobbling and tipping.

• Load Calculation Right: Get the right caster strength by dividing your equipment's total weight by three. This safety margin aids on uneven floors where one wheel may lift up.

• Demand a Total Lock: For true safety, choose a caster with a total lock. The brake secures both the wheel from rolling and the swivel from turning. It lets a base be completely fixed.

• Match Wheel to Floor: Select wheel material depending on your floor type. This helps avoid damage and makes rolling smooth.

• Select According to Your Use: Vending machines, arcade cabinets, and kiosks all have specific needs. Choose casters that have the appropriate features for each individual application.

What Are Low Profile Caster Wheels and Why Are They Important?

Low profile caster wheels are not just smaller regular casters. They are a special type that is meant for just one purpose: to provide mobility without adding any extra height. Knowing their special construction allows you to better understand their importance.

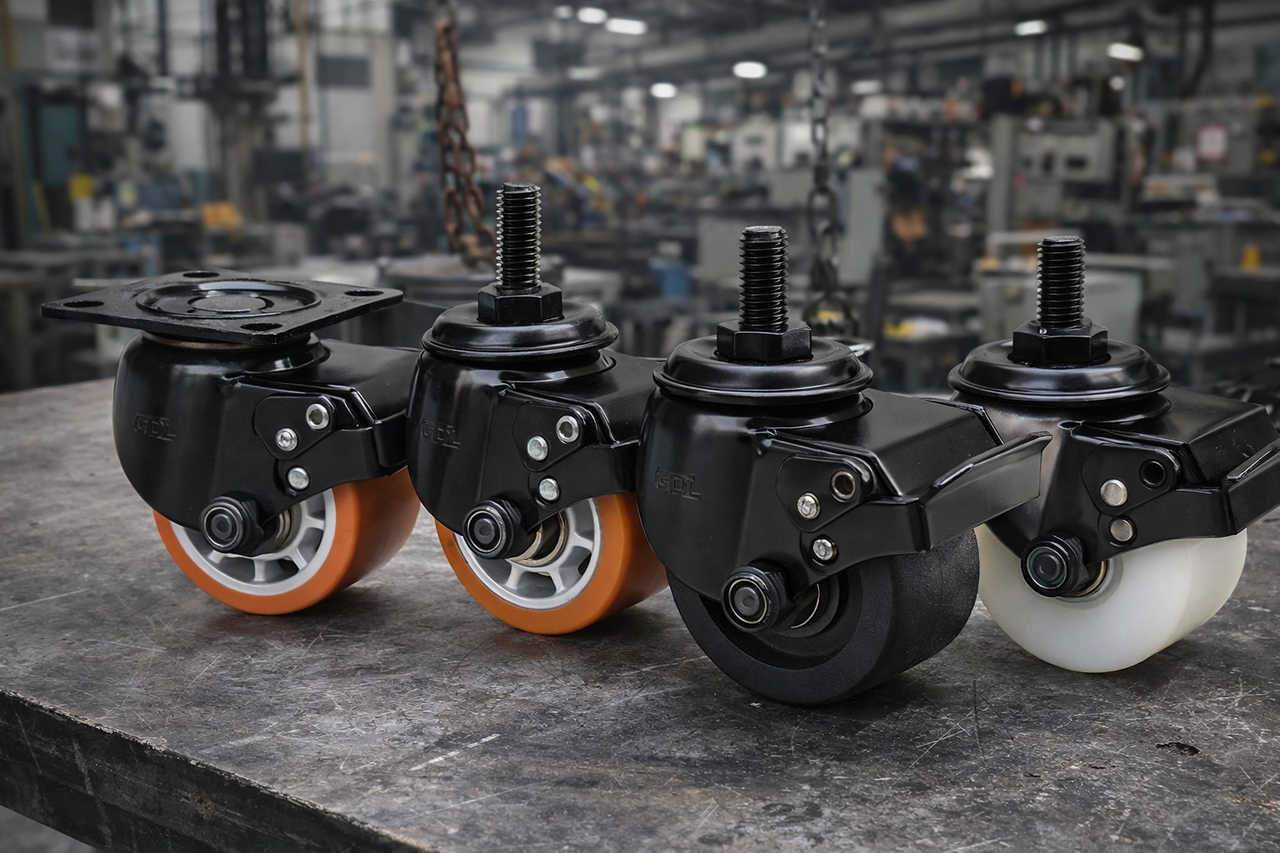

The Low-Profile Design

The core of this type of caster is its special low height bracket design. The bracket is also commonly known as a yoke or rigging. It keeps the wheel as close to the mounting point as possible. This greatly reduces the overall height added to your equipment.

A normal caster can add several inches of height. It creates a higher center of gravity. This causes the instability you want to prevent. The low profile caster's compact form gives a sleek, sturdy, and often stronger option.

Low Height and Heavy Duty: A Powerful Connection

Do not mistake "low profile" as "light duty." It is often the opposite. Low height heavy duty casters carry tons of weight. Their compact design creates the need for smarter engineering.

Manufacturers apply reinforced steel and cutting-edge bearing systems. They implement high-strength materials for wheels. This unique combination allows a small caster to support loads that would challenge much larger, taller versions. They really are the ideal solution. You have the benefits of both a low, stable base and the ability to carry a heavy load.

The Importance of Physics: How a Low Center of Gravity Prevents Tipping

The reason low profile casters work so well comes down to simple physics. Understanding the center of gravity helps in explaining why these casters are the go-to product for top-heavy equipment.

Center of Gravity (CG) in Brief

Every single object has a center of gravity. It represents the average position of the object's weight. An object is most stable when its center of gravity is low and directly above its base of support.

Think about a sports car versus a tall truck. The sports car has a very low CG, which makes it more stable while turning. The tall truck has a high CG, which makes it more likely to tip over. Your equipment acts the same way. A tall caster raises the CG and makes it unstable.

The Stability Formula: Low Profile + Wide Stance

Low height heavy duty casters are the most direct way of lowering your equipment's center of gravity. Caster experts explain that this design brings the center of gravity closer to the ground, which increases stability. If the CG is lower, the equipment is much harder to tip. This allows the equipment to be more stable during motion and at rest.

To improve stability even more, many of these casters also feature a wide stance design. The wheels are set farther apart inside the bracket, creating a wider base of support. The combination of a low profile and a wide stance is the ultimate formula for making top-heavy equipment safe and secure.

Key Selection Criteria: Your Checklist for Choosing the Best Low Height Heavy Duty Casters

When you are set to look for a low center of gravity casters supplier, you need to know what to look for. Choosing the right features is critical for performance, safety, and durability. Use this checklist to make a smart decision.

Load Capacity: Don't Guess, Calculate

This is the most crucial point. To find the required load capacity for each caster, take the total weight of your equipment (including its contents) and then divide it by three, not four. This simple rule provides a safety margin because on an uneven floor, only three wheels may be making contact at one time. Heavy-duty options can range from a few hundred pounds to over 1,000 lbs per caster.

Mounting Type: The Right Fit for Your Equipment

The most common and secure mounting choice is the low profile top plate. This is a flat steel plate that has four bolt holes. It creates a strong connection and evenly distributes the load across the base of the equipment. Before you retrofit, make sure to measure your existing bolt pattern so your new top plate is a perfect match.

Locking Mechanism: The Might of a Total Lock

From personal experience, one of the biggest safety issues is a caster that only locks the wheel. The equipment can still slide and pivot on the swivel bearing, creating a hazard. This is why you must insist on a total lock brake.

A total lock (swivel+wheel lock) is a premium feature that is a must for safety. When it is engaged, it locks the wheel from rotating and also locks the swivel bracket from turning. This transforms your mobile gear into a completely stationary and stable platform, which is necessary for use or servicing.

Wheel Material: Floor Protection and Effortless Mobility

The right wheel material provides a quiet, smooth roll and also protects your floors. A variety of wheel materials are available to satisfy particular needs, ranging from soft rubber to durable polypropylene. Using the wrong one can lead to floor damage or poor mobility.

Wheel Material	Best Floor Types	Pros	Cons
Polyurethane	Concrete, Tile, Hardwood, Carpet	Non-marking, quiet, good capacity	Can be more expensive
Nylon	Smooth Concrete, Carpet	High capacity, impact resistant	Noisy on rough surfaces, can mark floors
Soft Rubber (TPR)	Hardwood, Tile, Linoleum	Quietest, best floor protection	Lower load capacity, can wear faster
Phenolic	Rough Concrete, Industrial Floors	Very high capacity, resists chemicals	Hard, loud, can crack under impact

Application Deep Dive: The Right Casters for Your Machine

Different machines have different needs. A one-size-fits-all approach will not work here. Here is how to select the best low profile caster wheels for specific, demanding applications.

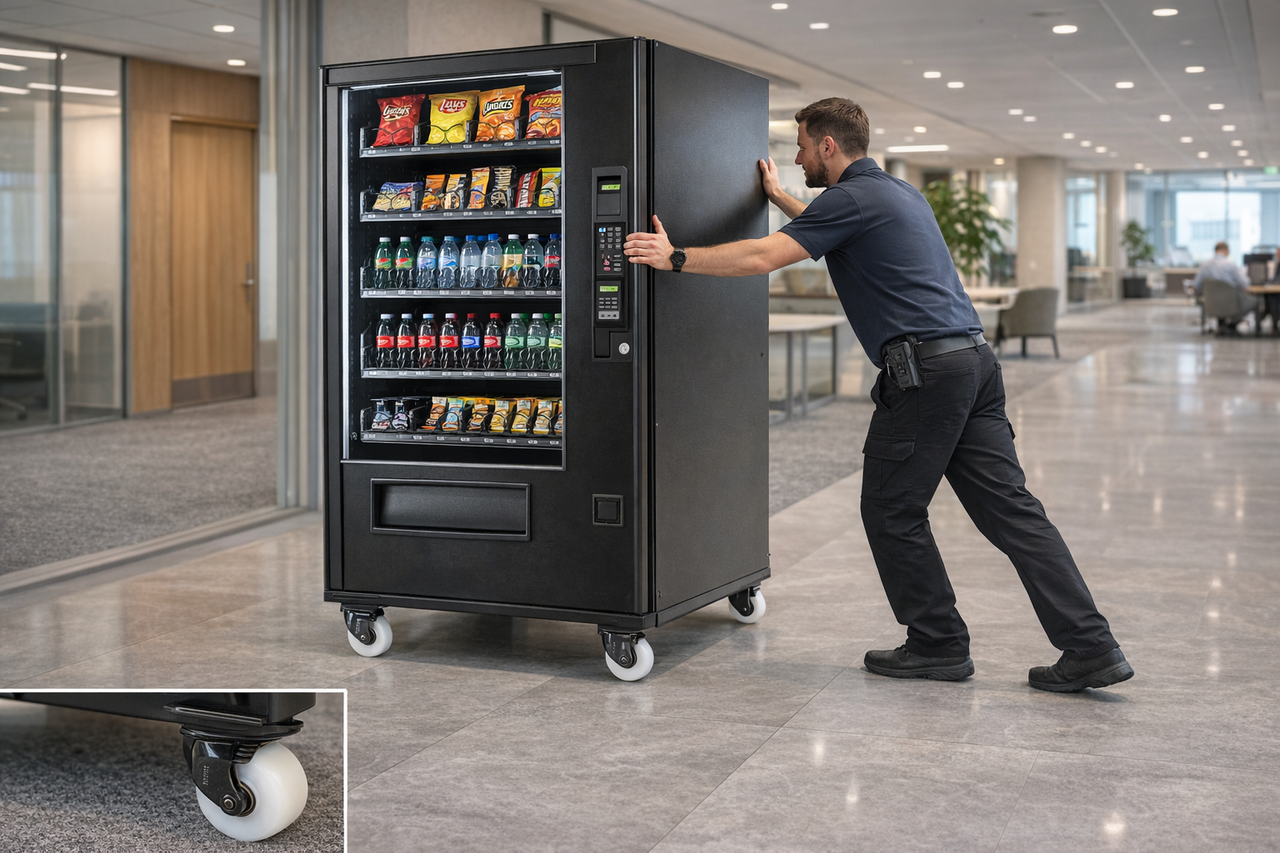

Casters for Vending Machines

Vending machines are a classic example of a challenging load. They are very heavy, and their weight shifts as products are added or removed, making them precariously top-heavy. They also have to be moved for cleaning and servicing without risk.

For this application, you need very high load capacity low height heavy duty casters. A wide stance design is crucial for stability, and a total lock brake is essential. It keeps the machine safely in place during restocking. Polyurethane wheels are a great choice because they protect commercial flooring from marks and scuffs.

Casters for Arcade Machines and Game Cabinets

Anyone who has seen a player getting into a racing or fighting game knows that arcade machines face intense, dynamic forces. A machine on standard wheels will wobble and shift, ruining the player experience. The need for a stable low height base is critical.

The solution is a set of low profile caster wheels with total lock brakes. The low profile eliminates wobble and keeps the cabinet firmly planted. The total lock ensures the machine does not move an inch, even during the most aggressive gameplay. A smooth-rolling wheel also allows arcade managers to easily rearrange floor layouts.

Casters for Kiosks and Digital Display Machines

Digital kiosks and display screens are usually tall, thin, and top-heavy. They are placed in high-traffic public areas like malls or airports, so stability is a primary safety concern.

In this case, a low profile design is a perfect match. It provides the stability needed to prevent tipping, is visually discreet, and reduces tripping hazards. A wide stance caster is the best protection against being bumped or pushed. Finally, a total lock is essential to prohibit unauthorized movement and ensure public safety. Choosing the right low profile heavy duty caster wheels involves carefully considering the operating environment and load distribution.

Finding a Trustworthy Low Profile Caster Wheels Manufacturer or Supplier

Your casters are only as good as the company that makes or sells them. Partnering with a reliable low profile caster wheels manufacturer or supplier is crucial. You need a quality product that is designed to last.

What to Look for in a Supplier

When looking into a low center of gravity casters supplier, watch for the following indicators of quality and reliability.

• Industry Know-How and Support: A good supplier will understand your application and should be able to suggest the proper solution. This includes advising you on the best casters for vending machines or casters for kiosks and display machines.

• Products Available: They must have a huge collection of different sizes, load capacities, and wheel materials. Most importantly, they should offer configurations with a total lock brake and low profile top plate options.

• Quality Indicators: Look for suppliers that provide extensive technical specifications, including load capacity test data and material information. Transparency is evidence of confidence in their products.

• Customization: For complex machines or extreme usage, a supplier that can offer custom-engineered solutions will be an invaluable partner.

By putting an emphasis on stability and security, you can be sure that your equipment will work reliably for many years. The right low profile caster wheels are not an expense. They are an investment in quality and peace of mind.

Frequently Asked Questions (FAQ)

What is the main advantage of a low center of gravity caster?

The biggest benefit is a huge boost in stability. By lowering your equipment's center of gravity, you seriously cut down the risk of it wobbling when you move it or even tipping over. This is a must-have for safety, especially with top-heavy things like kiosks or arcade machines.

How much weight can low profile heavy duty casters support?

Load capacities depend largely on the design and materials used. While smaller low profile casters might hold a couple of hundred pounds each, true low height heavy duty casters can handle 700 lbs, 1,000 lbs, or even more per caster. That is why they are used in very heavy industrial and commercial equipment.

Are low profile casters suitable for all floor types?

Yes, as long as you pick the right wheel material. For instance, use soft rubber or polyurethane wheels on nice floors you don't want to mark up. For tough concrete floors where you need durability for heavy loads, harder nylon or phenolic wheels are the way to go.

What is a "total lock" caster and why do I need one?

A total lock is a special brake that does two things: it stops the wheel from rolling and it stops the whole caster from swiveling. You need one for the best safety and stability. It makes sure your equipment is completely locked in place when you park it, which is super important when it's being used or serviced.

Can I retrofit low profile casters onto my existing arcade machine?

Definitely. Upgrading your old casters is a really common and smart move. You just need to measure the bolt pattern on your current mounting plate and find a low profile top plate caster that's a match. Always make sure the new casters' combined load capacity is more than enough for the machine's total weight.
